Ublox USB GPS接收器(2m 纜線長度) 支援樹莓派與 Jetson NANO windows Linux

-26%

Ublox USB GPS接收器(2m 纜線長度) 支援樹莓派與 Jetson NANO windows Linux

NT$650 NT$480 (未稅)

Availability: 尚有庫存 貨號: GMD-008344 分類: 標籤: , , , , , , ,

描述

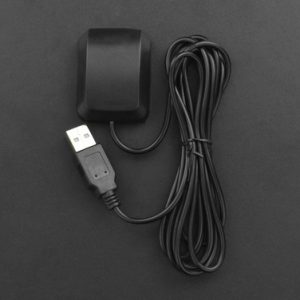

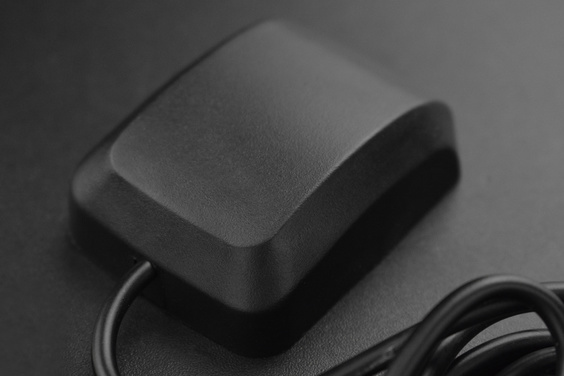

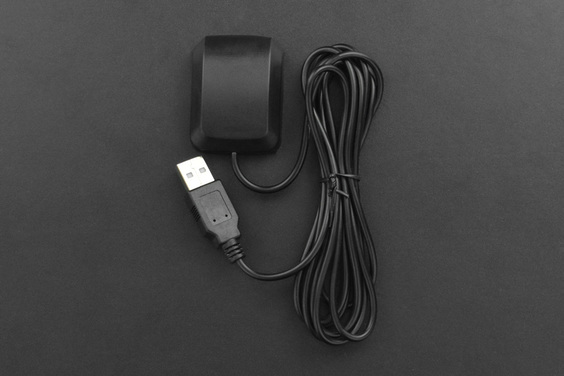

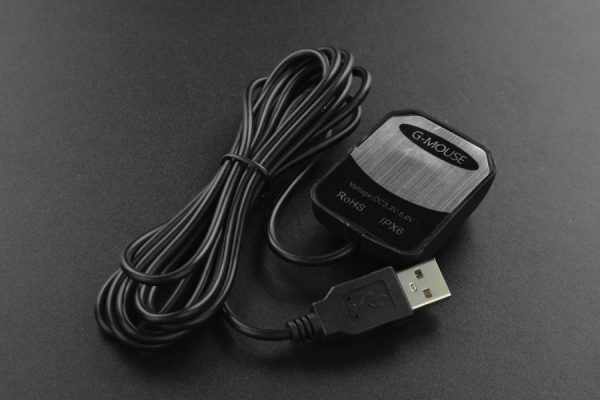

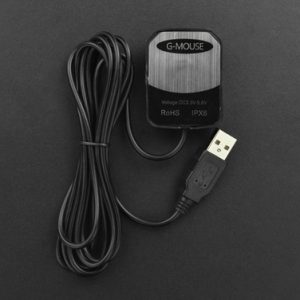

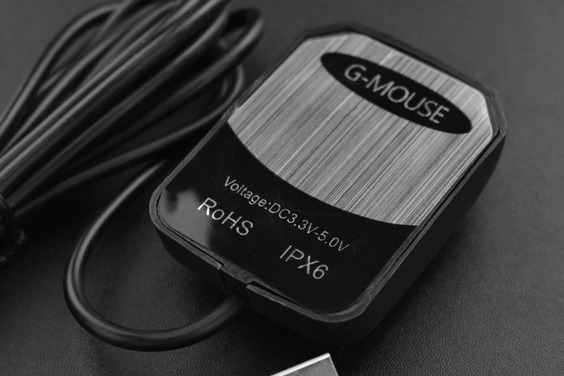

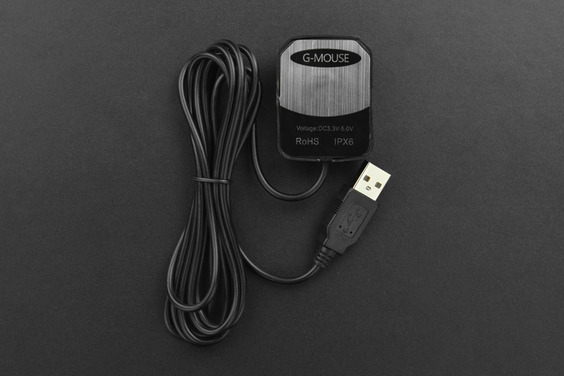

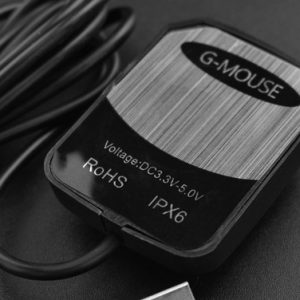

Ublox USB GPS接收器(2m 纜線長度) 支援樹莓派與 Jetson NANO windows Linux

Ublox USB GPS接收器 是一款採用Ublox定位芯片,能夠以56通道接收衛星信號、低功耗、高靈敏度的GPS接收機。內置衛星接收天線,和傳統接收機相比較它具有信號更強、定位更快等優點。產品採用高精度的定位芯片件及工業級製造工藝,故能滿足工業級的定位需求和個人使用需求。內置電池用以存儲衛星資料,如衛星訊號狀態、最後位置及時間,方便快速的增加下一次開機時的定位速度。採用USB接口能在樹莓派,英偉達,LP上使用。USB線長達2米,傳感器底部有磁性吸附在金屬物件上更有利於傳感器安裝。可適用於車載導航、手持定位、可穿戴設備等領域。

技術規格

  • 頻率:L1, 1575.42MHz/L2,1561.10MHZ/L3,1602.00MHZ
  • 波特率:4800,9600,19200,38400,57600,115200bps
  • 接收通道:56CH
  • 靈敏度:跟踪:-162dBm 捕捉:-160dBm 冷啟動-148dBm
  • 冷啟動:平均29S
  • 溫啟動:平均3S
  • 熱啟動:平均1S
  • 精度:水平位置精度<2.5M,SBAS<2.0M,授時精度:30ns
  • 更新頻率:1HZ
  • 外形尺寸:38×49×16mm USB線長2米
  • 工作溫度:-40℃~85℃
  • 儲存溫度:-40℃~85℃

配送清單

  • USB GPS接收器(2m延長線) ×1

相關文檔

USB GPS Receiver with 2m Extension Cable (Compatible with Raspberry Pi/ LattePanda/ Jetson Nano)

This is an Ublox chip-based GPS receiver module of low power and high sensitivity that can receive 56 channels satellite signal. Compared with traditional GPS receivers, it brings much more accurate and faster-positioning performance with stronger signals. Integrated with a built-in receiving antenna, this product adopts a high-precision positioning chip and industrial-grade manufacturing process so that it can meet the positioning requirements of both industrial-grade and personal use. The GPS receiver has a battery inside for supplying power for storing satellite data, such as satellite signal status, final position, and time that would greatly increase the positioning speed at the module’s next boot. Besides, this receiver adopts USB interface, which can be conveniently used in main controllers like Raspberry Pi, NVIDIA, LattePanda. The module has a 2m USB cable and its bottom is magnetic which makes it able to be easily attached to metal objects. It is suitable for vehicle navigation, handheld positioning, wearable devices, and other fields.

SPECIFICATION

  • Chip: UBX-G7020-KT
  • Frequency: L1, 1575.42MHz/L2,1561.10MHZ/L3,1602.00MHZ
  • Baud Rate: 4800,9600,19200,38400,57600,115200bps
  • Receiving Channel: 56CH
  • Sensitivity: tracking -162dBm; Acquisition: 160dBm; cold start: -148dBm
  • Cold Start: 29s average
  • Warm Start: 3s average
  • Hot Start: 1s average
  • Accuracy: horizontal position accuracy<2.5M, SBAS<2.0M

Timing accuracy: 30ns

  • Update Rate: 1Hz
  • Outline Dimension: 38×49×16mm
  • USB Length: 2m
  • Operating Temperature: -40℃~85℃
  • Storage Temperature: -40℃~85℃

DOCUMENTS

SHIPPING LIST

  • USB GPS Receiver with 2m Extension Cable (Compatible with Raspberry Pi/ LattePanda/ Jetson Nano) x1
