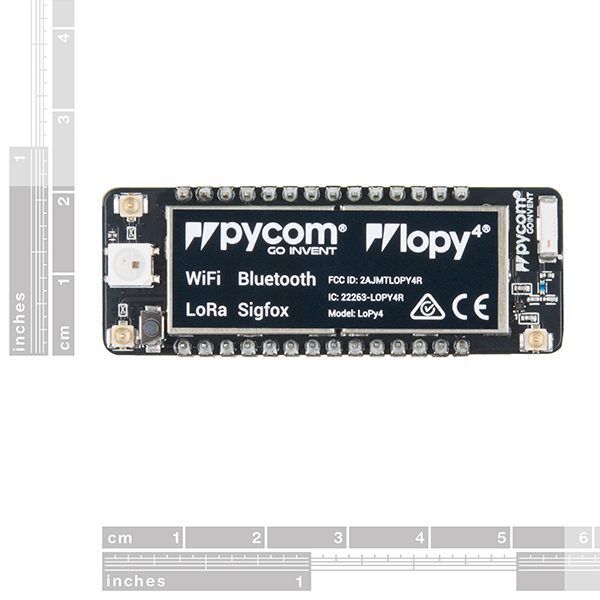

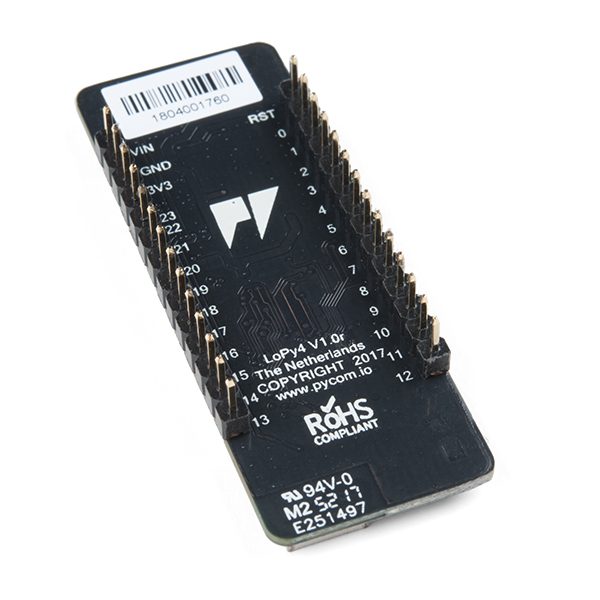

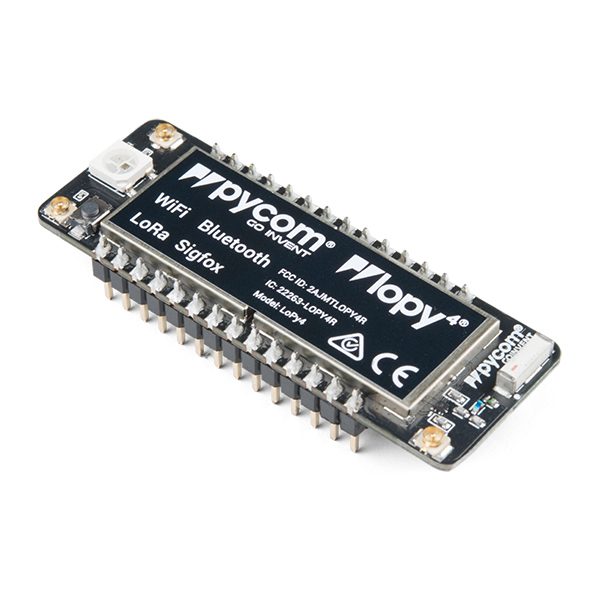

Pycom LoPy4 Development Board 物聯網開發板 WiFi, BLE, LoRa, and Sigfox

-13%

Pycom LoPy4 Development Board 物聯網開發板 WiFi, BLE, LoRa, and Sigfox

NT$2,100 NT$1,830 (未稅)

描述

Pycom LoPy4 Development Board 物聯網開發板 WiFi, BLE, LoRa, and Sigfox

Pycom LoPy4 是一款緊湊型四重網絡MicroPython開發板(LoRa,Sigfox,WiFi,藍牙)。台灣智能感測科技推薦您開發物聯網的完美企業級物聯網平台。借助最新的Espressif ESP32芯片組,LoPy4將功能,友善性和靈活性完美結合。隨處創建和連接你的東西。

LoPy4可充當 LoRa nano 網關和適用於全球所有LoRa和Sigfox網絡的多承載(LoRa,Sigfox,WiFi和BLE)開發平台。它可以通過MicroPython和Pymakr插件進行編程,實現快速物聯網應用程序開發,LoPy4 易於現場編程和通過網絡故障轉移實現額外的恢復能力。您還可以配置原始LoRa模式下的LoPy4,以便在LoPy4之間直接發送數據包。速度與部署速度以及訪問遍布歐洲,美國,非洲和印度的新LPWAN網絡的最佳組合。LoPy4已通過CE,FCC批准,LoRaWAN和Sigfox認證。

  • 強大的CPU,BLE和藝術級WiFi無線電
  • 也可以加倍成為Nano LoRa網關
  • 啟用MicroPython
  • 適合標準麵包板(帶頭)
  • 超低功耗使用:與其他連接的微控制器相比是一小部分
  • Espressif ESP32芯片組
  • 雙處理器+ WiFi無線電片上系統
  • 網絡處理器處理WiFi連接和IPv6堆棧
  • 主處理器完全免費運行用戶應用程序
  • 一個額外的ULP協處理器,可在深度睡眠模式下監控GPIO,ADC通道並控制大部分內部外設,同時僅消耗25uA
  • Sigfox規範
    • 0類設備。最大發射功率:
    • RCZ1 – 868MHz,+ 14dBm(歐洲)
    • RCZ2 – 902MHz,+ 20dBm(美洲)
    • RCZ4 – 920-922MHz,+ 20dBm(澳大利亞和新西蘭)
    • 節點範圍:長達50km
    • Sigfox認證
  • LoRa規範
    • Semtech LoRa收發器SX1276
    • LoRaWAN堆棧
    • A類和C類設備
    • 868 MHz(歐洲)最大+ 14dBm
    • 915 MHz(北美和南美,澳大利亞和新西蘭)最大+ 20dBm
    • 433 MHz(歐洲),最大值為+ 10dBm
    • 470 – 510 MHz(中國)最大+ 14dBm
    • 節點範圍:長達40km
    • 納米網關:長達22公里
    • 納米網關容量:最多100個節點
  • 2個UART,SPI,2個I2C,I2S,微型SD卡
  • 模擬通道:8×12位ADC
  • 定時器:帶PWM和輸入捕捉的4×16位
  • 所有外設上的DMA
  • GPIO:最多24個
  • 內存:4MB
  • 外部閃存:8MB
  • 散列/加密:SHA,MD5,DES,AES
  • WiFi:802.1b / g / n 16mbps
  • 藍牙:低能耗和經典
  • RTC @ 32kHz
  • 功率
    • 輸入:3.3V – 5.5V
    • 3v3輸出能夠提供高達400mA的電流
    • WiFi:主動模式下12mA,待機模式下5uA
    • LoRa:主動模式下15mA,待機1uA
    • Sigfox(歐洲):Rx模式下為12mA,Tx模式下為42mA,待機模式下為0.5uA
    • Sigfox(澳大利亞,新西蘭和南美洲):Rx模式下為12mA,Tx模式下為120mA,待機時為0.5uA

資源與文件下載

The LoPy4 is a compact quadruple network MicroPython enabled development board (LoRa, Sigfox, WiFi, Bluetooth). It’s the perfect enterprise-grade IoT platform for your connected Things. With the latest Espressif ESP32 chipset the LoPy4 offers a perfect combination of power, friendliness, and flexibility. Create and connect your things everywhere. Fast.

Pycom LoPy4

The LoPy4 can act as a LoRa nano gateway and a multi-bearer (LoRa, Sigfox, WiFi and BLE) development platform suitable for all LoRa and Sigfox networks around the globe. It is programmable with MicroPython and the Pymakr plugins for fast IoT application development, easy programming in-field and extra resilience with network failover. You can also configure the LoPy4 in raw LoRa mode to send packets directly between LoPy4’s. The best blend of speed to deployment and access to new LPWAN networks rolling out across Europe, USA, Africa and India. The LoPy4 is CE, FCC approved, LoRaWAN and Sigfox certified.

  • Powerful CPU, BLE and state of the art WiFi radio
  • Can also double up as Nano LoRa gateway
  • MicroPython enabled
  • Fits in a standard breadboard (with headers)
  • Ultra-low power usage: a fraction compared to other connected micro controllers
  • Espressif ESP32 chipset
  • Dual processor + WiFi radio System on chip
  • Network processor handles the WiFi connectivity and the IPv6 stack
  • Main processor is entirely free to run the user application
  • An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA



  • Sigfox Specification
    • Class 0 device. Maximum Tx power:
    • RCZ1 – 868MHz, +14dBm (Europe)
    • RCZ2 – 902MHz, +20dBm (Americas)
    • RCZ4 – 920-922MHz, +20dBm (Australia and New Zealand)
    • Node range: Up to 50km
    • Sigfox certified
  • LoRa Specification
    • Semtech LoRa transceiver SX1276
    • LoRaWAN stack
    • Class A and C devices
    • 868 MHz (Europe) at +14dBm maximum
    • 915 MHz (North and South America, Australia and New Zealand) at +20dBm maximum
    • 433 MHz (Europe) at +10dBm maximum
    • 470 – 510 MHz (China) at +14dBm maximum
    • Node range: Up to 40km
    • Nano-gateway: Up to 22km
    • Nano-gateway capacity: Up to 100 nodes
  • 2 x UART, SPI, 2 x I2C, I2S, micro SD card
  • Analog channels: 8×12 bit ADCs
  • Timers: 4×16 bit with PWM and input capture
  • DMA on all peripherals
  • GPIO: Up to 24
  • RAM: 4MB
  • External flash: 8MB
  • Hash / encryption: SHA, MD5, DES, AES
  • WiFi: 802.1b/g/n 16mbps
  • Bluetooth: Low energy and classic
  • RTC @ 32kHz
  • Power
    • Input: 3.3V – 5.5V
    • 3v3 output capable of sourcing up to 400mA
    • WiFi: 12mA in active mode, 5uA in standby
    • LoRa: 15mA in active mode, 1-uA in standby
    • Sigfox (Europe): 12mA in Rx mode, 42mA in Tx mode and 0.5uA in standby
    • Sigfox (Australia, New Zealand and South America): 12mA in Rx mode, 120 mA in Tx mode and 0.5uA in standby
