MAX44009 環境光感測器模組 GY-49 適用於 Arduino I2C IIC 輸出 低功耗 1.7V – 3.6V

-13%

MAX44009 環境光感測器模組 GY-49 適用於 Arduino I2C IIC 輸出 低功耗 1.7V – 3.6V

NT$150 NT$130 (未稅)

Availability: 尚有庫存 貨號: SNL-003866 分類: 標籤: , ,
Add to Wishlist
  • 描述
  • 評價 (0)

描述

MAX44009 環境光感測器模組 GY-49 適用於 Arduino I2C IIC 輸出 低功耗 1.7V – 3.6V

MAX44009 環境光感測器模組 具有I2C數字輸出,非常適合智能手機,筆記本電腦和工業傳感器等多種便攜式應用。 工作電流小於1μA,是業界功耗最低的環境光傳感器,具有0.045 lux至188,000 lux的超寬22位動態範圍。低光操作可在深色玻璃應用中輕鬆操作。

MAX44009 環境光感測器模組  晶片上光電二極管的光譜響應經過優化,可模擬人眼對環境光的感知,並具有紅外和紫外阻擋功能。 自適應增益模塊自動選擇正確的勒克斯範圍以優化計數/勒克斯。 該IC的工作電壓範圍為1.7V至3.6V,完全工作時僅消耗0.65μA電流。

硬體規格

  • 範圍:寬0.045勒克斯至188,000勒克斯
  • VCC:1.7V至3.6V
  • 工作電流:ICC =0.65μA
  • 溫度範圍:-40°C至+ 85°C
  • 設備地址選項:1001 010x和1001 011x
  • PCB尺寸:1.32 * 1.05cm / 0.52“* 0.41”

應用/用途:

  • 手機/智能手機
  • 數字照明管理
  • 便攜式設備
  • 安全系統
  • 平板電腦/筆記本電腦
  • 電視/投影儀/顯示器

技術文件與範例

出貨清單包

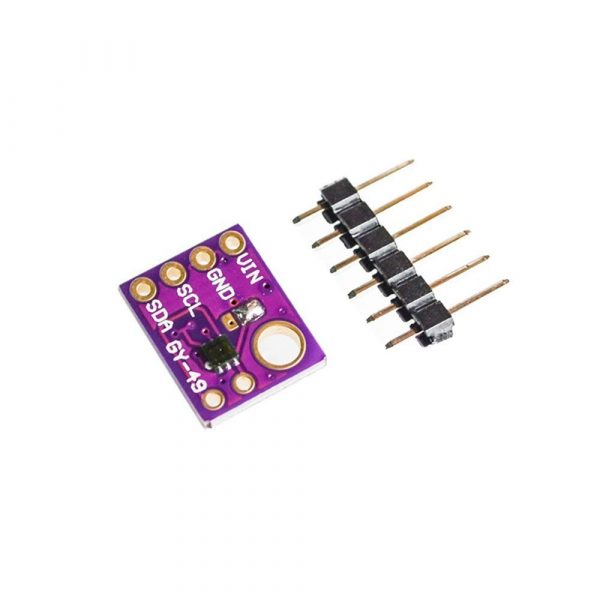

1個  MAX44009 環境光感測器模組

1 x 4針頭

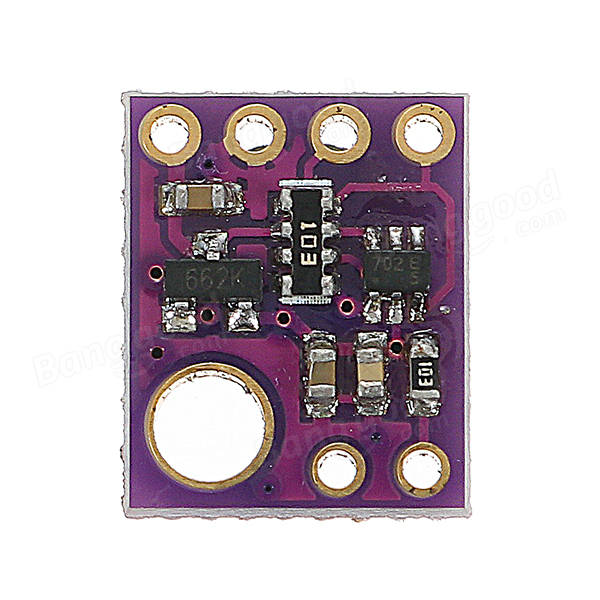

MAX44009 環境光感測器模組

GY-49 MAX44009環境光傳感器模塊,適用於Arduino,具有I2C IIC輸出,最低功耗1.7V-3.6V

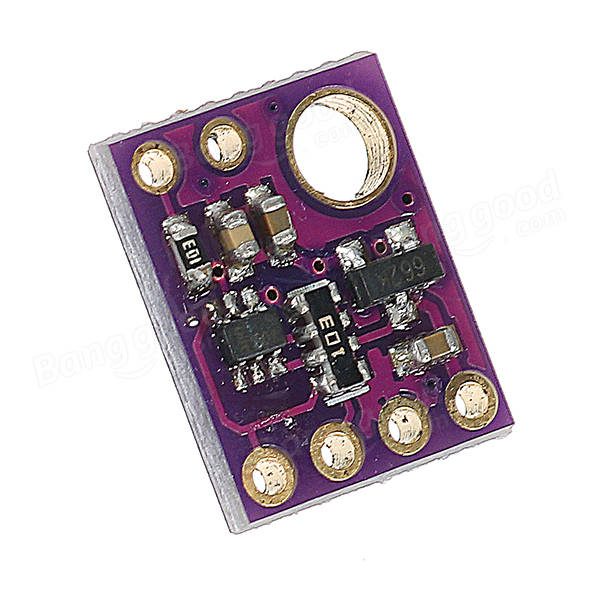

MAX44009 環境光感測器模組

GY-49 MAX44009環境光傳感器模塊,適用於Arduino,具有I2C IIC輸出,最低功耗1.7V-3.6V

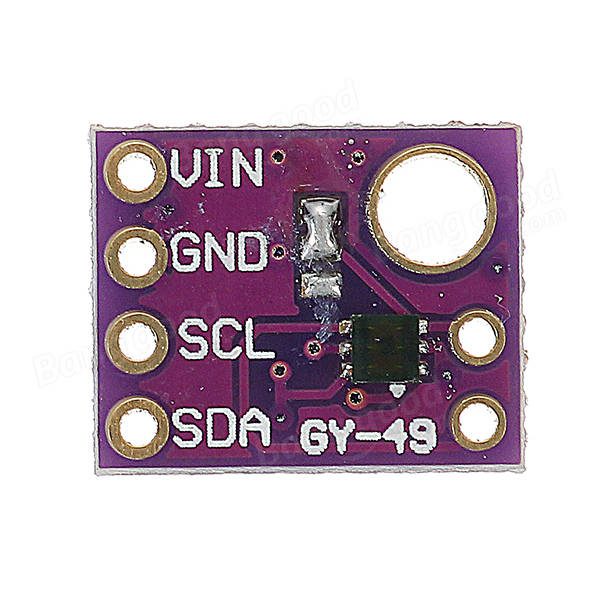

GY-49 MAX44009 Ambient Light Sensor Module For Arduino With I2C IIC Output Lowest Power 1.7V-3.6V

Feature:
The MAX44009 ambient light sensor features an I2C digital output that is ideal for a number of portable applications such as smartphones, notebooks, and industrial sensors.
At less than 1μA operating current, it is the lowest power ambient light sensor in the industry and features an ultra-wide 22-bit dynamic range from 0.045 lux to 188,000 lux.
Low-light operation allows easy operation in dark-glass applications.
The on-chip photodiode’s spectral response is optimized to mimic the human eye’s perception of ambient light and incorporates IR and UV blocking capability.
The adaptive gain block automatically selects the correct lux range to optimize the counts/lux.
The IC is designed to operate from a 1.7V to 3.6V supply voltage range and consumes only 0.65μA in full operation.
Specification:
Range: Wide 0.045 Lux to 188,000 Lux
VCC: 1.7V to 3.6V
Operating current: ICC = 0.65μA
Temperature range: -40°C to +85°C
Device address options : 1001 010x and 1001 011x
PCB size: 1.32*1.05cm/0.52″*0.41″
Applications/Uses:
Cellular Phones/Smartphones
Digital Lighting Management
Portable Devices
Security Systems
Tablet PCs/Notebook Computers
TVs/Projectors/Displays
Package includes:
1 x MAX44009 Ambient Light Sensor
1 x 4 pin header
