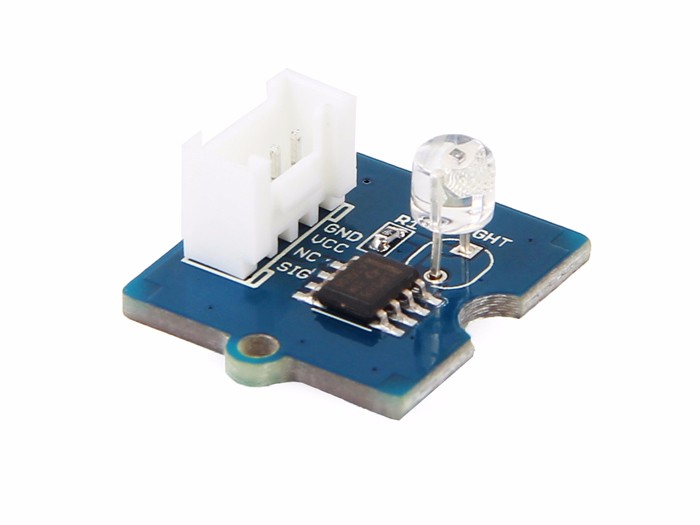

Grove – Light Sensor (P) v1.1 光感測器模組

Grove – Light Sensor(P)v1.1使用LS06-S光電晶體管替代傳統的光敏電阻(LDR)傳感器。LS06-S光傳感器具有更加線性的模擬輸出,符合照度範圍從0到供電電壓(通常為5V)。當它暴露在日光下時,可以檢測到一個等於供電電壓的值,當你用手覆蓋時,該值為0V。

特徵

  • 線性模擬輸出符合照度
  • 低暗電流和低工作勒克斯
  • 使用方便

產品規格

  • 電源:3.3 – 5V DC
  • 光電晶體管:LS06-S
  • 連接器:4針Buck Grove接口
  • 尺寸:20mm * 20mm

Grove - Light Sensor (P) 光感測器模組

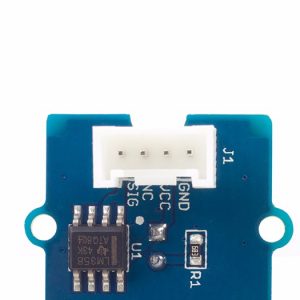

Grove-Light 感測器集成了一個光敏電阻(光敏電阻)來檢測光線強度。光強度增加時,光敏電阻的電阻會減小。板上的雙OpAmp芯片LM358產生對應於光強度(即基於電阻值)的電壓。輸出信號是模擬值,光線越亮,數值越大。

這個模組可以用來建立一個光控開關,即在白天關閉燈並在夜間開燈。

文件與資源下載

Differs from the last version, the Grove – Light Sensor (P) v1.1 uses the LS06-S phototransistor as a replacement of the traditional Light Dependent Resistor (LDR) sensors. The LS06-S light sensor has much more linear analog output conforming to illuminance, which ranges from 0 to the supplying voltage (normally 5V). A value equals to the supplying voltage can be detected when it’s exposed to daylight, and it gives 0V when you covered it with your hand.
Features

  • linear analog output conforming to illuminance
  • Low dark current and low working lux
  • Easy to use


Specifications

  • Power supply: 3.3 – 5V DC
  • Phototransistor: LS06-S
  • Connector: 4 pin Buckled Grove interface

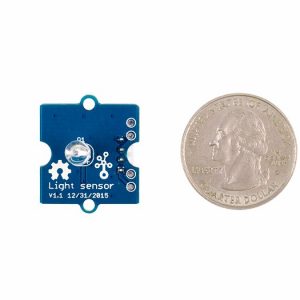

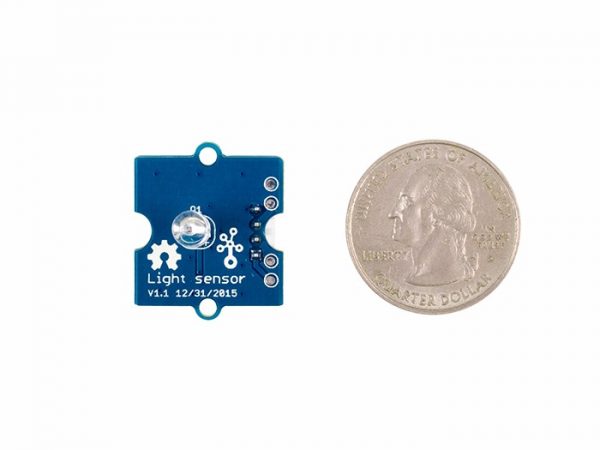

  • Dimension: 20mm*20mm

Technical Details

Dimensions130mm x 90mm x 9.5mm
WeightG.W 9g
BatteryExclude

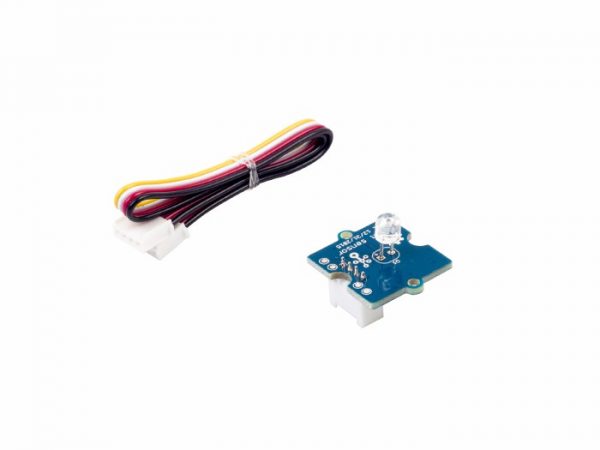

Part List

Grove – Light Sensor(P) V1.11
