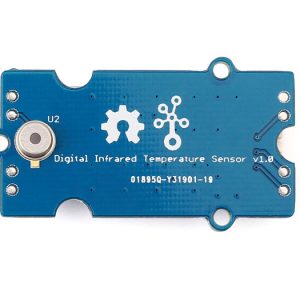

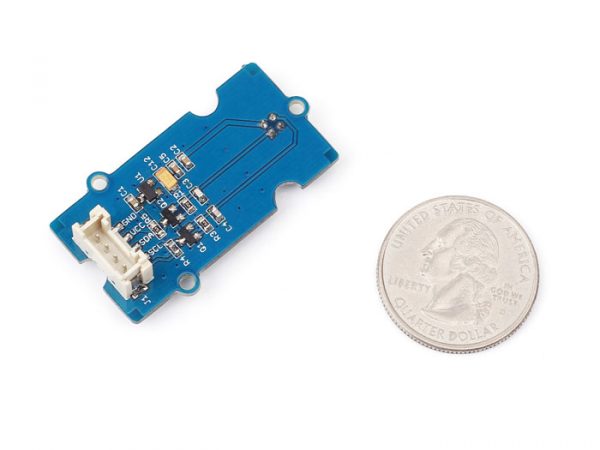

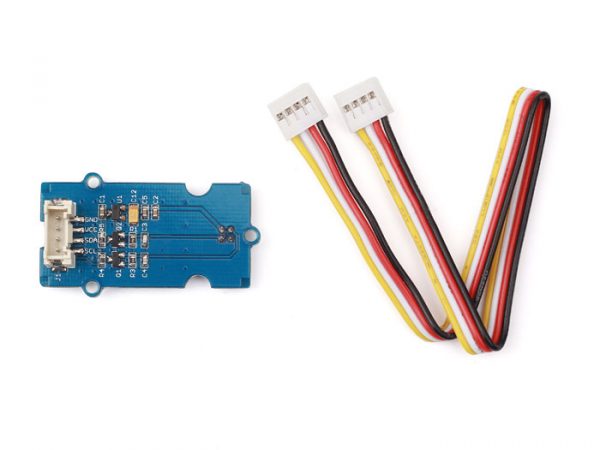

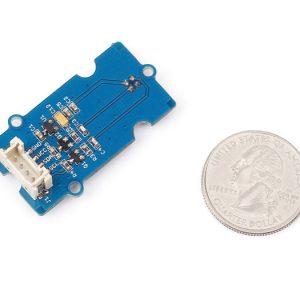

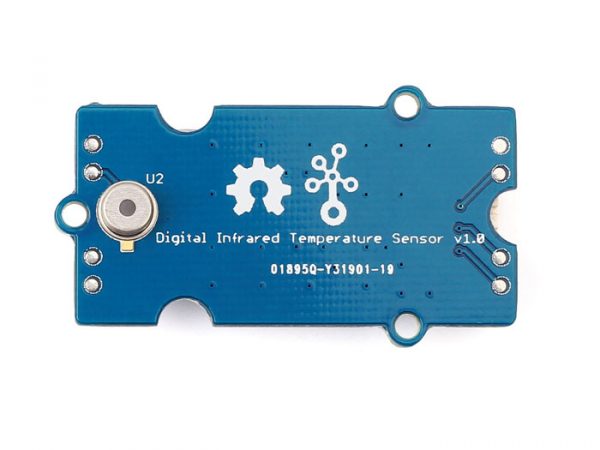

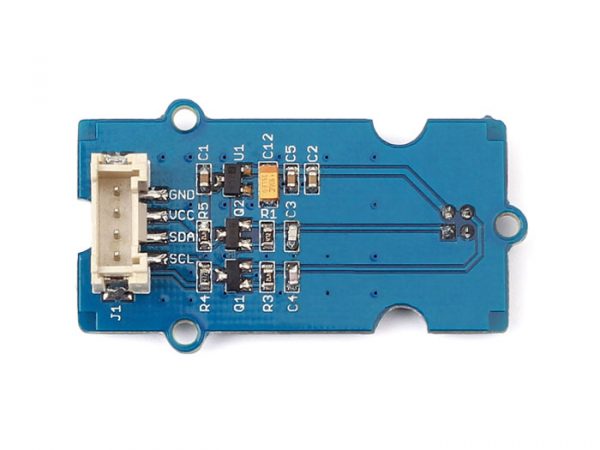

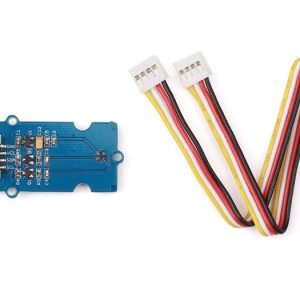

Grove MLX90615 Digital Infrared Temperature 數字紅外溫度感測器

Grove MLX90615 Digital Infrared Temperature 數字紅外溫度感測器 是基於 MLX90615 的非接觸式溫度測量模塊。紅外敏感熱電堆探測器晶片和信號調理晶片集成在同一個封裝中。該模塊使用 SMBus 與 Arduino 進行通信,最多可以連接 127 個傳感器可以通過普通的2線讀取。由於採用了模塊的低噪聲放大器,16 位 ADC 和功能強大的 DSP 單元,在較寬的溫度範圍內可實現1℃的高精度和0.02℃的高測量分辨率。

硬體規格

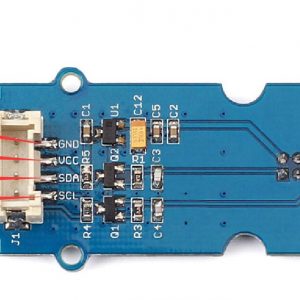

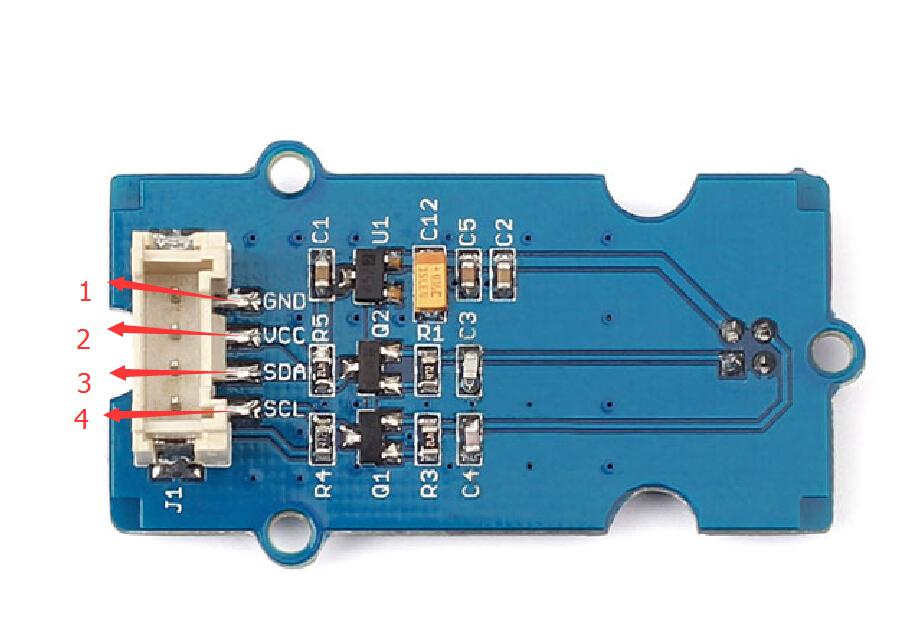

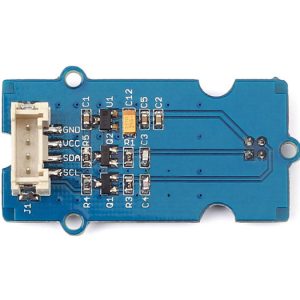

Grove - Digital Infrared Temperature Sensor

針號名稱類型功能說明
1GND信號地
2VCC正電源輸入端子(3.3V或5V)
3SDA進出I2C數據輸入/輸出
4SCLI2C CLK

文件與資源下載

原廠技術文件與範例下載

Grove – Digital Infrared Temperature Sensor

The Digital Infrared temperature sensor is a non-contact temperature measurement module which bases on MLX90615.Both the IR sensitive thermopile detector chip and the signal conditioning chip are integrated in the same package.This module communicates with Arduino using SMBus,up to 127 sensors can be read via common 2 wires.Thanks to the module’s low noise amplifier, 16-bit ADC and powerful DSP unit, it can achieved a high accuracy of 1℃ over wide temperature rage and a high measurement resolution of 0.02℃.

FEATURES
• Wide Temperature Detecting Range
    • 40 to 85°C for sensor temperature
    • 40 to 115°C for object temperature
•  High accuracy of 1°C over wide temperature
• Measurement resolution of 0.02°C
• Embedded emissivity compensation
• Power saving mode



Technical Details

Dimensions130mm x 90mm x 9mm
WeightG.W 8g
BatteryExclude
