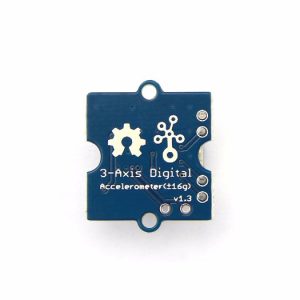

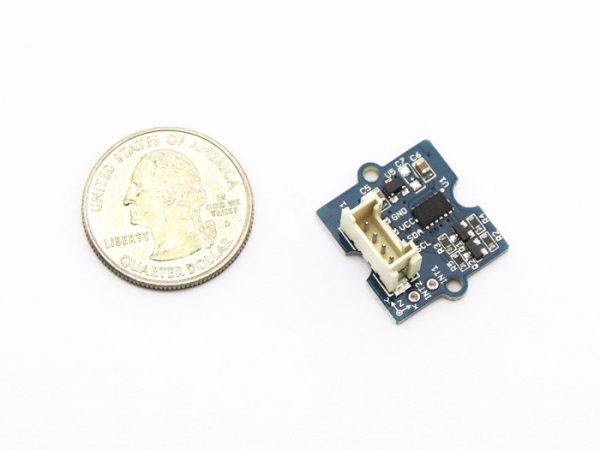

Grove – 3-Axis Digital Accelerometer(±16g) 3軸數字加速度計

-14%

Grove – 3-Axis Digital Accelerometer(±16g) 3軸數字加速度計

NT$410 NT$352 (未稅)

基於出色的ADXL-345,這款數字三軸加速度計具有出色的 EMI 保護功能

Availability: 尚有庫存 貨號: SNM-000289 分類: 標籤: , , , , , ,

描述

Grove – 3-Axis Digital Accelerometer(±16g) 3軸數字加速度計

基於出色的ADXL-345,這款數字三軸加速度計具有出色的 EMI 保護功能。其可變輸出使其適用於廣泛的應用:
  • 硬盤震動保護
  • 振動傳感器
  • 遊戲控制器輸入
  • 機器人
  • 智能車輛
  • 任何你需要獲得運動感應和方向信息。

特色

  • 寬功率範圍DC3V至5V
  • Grove 模組
  • 3軸感應
  • 高靈敏度
  • 小巧,低調的包裝:14端子LGA
  • 在VS = 2.5 V(典型值)時,待機模式下的功耗為0.1μA,
  • 10,000 g shock survival
  • RoHS / WEEE無鉛兼容
卓越的靈敏度(3.9mg / LSB @ 2g)可提供高達±16g的高精度輸出。該傳感器採用4針Grove接口(3-5VDC),方便與標準Arduino設備或Seeed Stalker連接。
Based on the excellent ADXL-345, this digital 3-axis accelerometer has excellent EMI protection. Its variable output makes it suitable for a wide range of applications:
  • HDD shock protection
  • Vibration sensor
  • Game controller input
  • Robotics
  • Smart vehicles
  • Anywhere you need to obtain motion-sensing & orientation information.
The excellent sensitivity (3.9mg/LSB @2g) provids high-precision output up to ±16g.

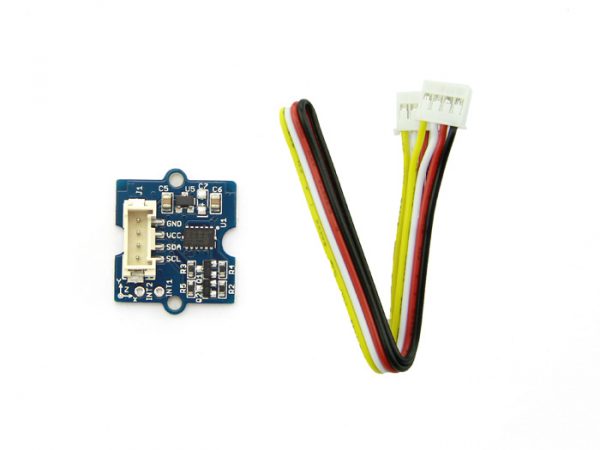

The sensor is utilizes a 4-pin Grove interface (3-5VDC) for easy connectivity with your standard Arduino device or Seeed Stalker.
Features
  • Wide power range DC3V to 5V
  • Grove module
  • 3 axis sensing
  • High sensitivity
  • Small, low-profile package: 14-Terminal LGA
  • Low power 0.1 μA in standby mode at VS = 2.5 V (typical)
  • 10,000 g shock survival
  • RoHS/WEEE lead-free compliant
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your using of the product.
Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to ourforum.

Technical Details

Dimensions 130mm x 90mm x 10mm
Weight G.W 6g
Battery Exclude
