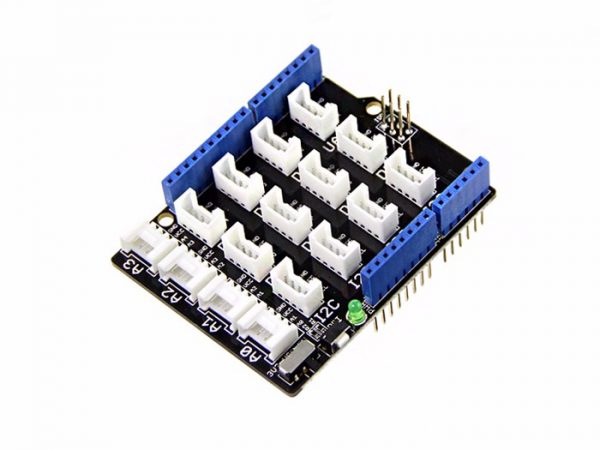

Base Shield V2 Grove 插座式擴展版

Arduino Uno是最流行的Arduino闆卡,但是當你的項目需要大量的傳感器或者LED而你的跳線亂七八糟的時候,Arduino Uno有時會令人沮喪。創建Grove – Base Shield的目的是幫助你擺脫麵包板和跳線。通過底板上豐富的Grove連接器,您可以非常方便地將所有Grove模組添加到Arduino Uno!

特徵

Base Shield上有16個Grove連接器,這裡我們用一個表格來顯示細節。

規範名稱數量
類似物A0 / A1 / A2 / A34
數字D2 / D3D4 / D5 / D6 / D7 / D87
UARTUART1
I2CI2C4

除了豐富的grove連接器外,板上還可以看到RST按鈕,指示電源狀態的綠色LED,ICSP引腳,切換開關和四行引腳。沒有必要解釋RST按鈕和LED,但是您真的需要知道以下兩個對您的使用非常重要的功能。

1.電源兼容:

每個Grove連接器都有四根電線,其中一個是VCC。但是,不是每個微控制器主板都需要5V的電源電壓,有的需要3.3V。這就是為什麼我們添加一個電源切換開關到Base Shield v2,以便您可以通過此開關選擇您正在使用的微控制器主板的合適電壓。

例如,如果您在Base Shield v2中使用Arduino UNO,請將開關置於5v位置; 在使用Seeeduino Arch和Base Shield v2時,請將開關轉到3.3v。

2.兼容:

Base Shield V2 的引腳與 Arduino Uno R3相同,不過 Arduino Uno 並不是與 Base Shield V2 兼容的主板,在這裡我們列出了已經確認可以與Base Shield V2 一起使用的主板。

    • Arduino Uno(all revisions)/Seeeduino(V4&V4.2)
    • Arduino Mega/Seeeduino Mega
    • Arduino Zero(M0)/Seeeduino Lorawan
    • Arduino Leonardo/Seeeduino Lite
    • Arduino 101
    • Arduino Due 3.3V
    • Intel Edison 5V
    • Linkit One

硬件概述

Base Shield V2

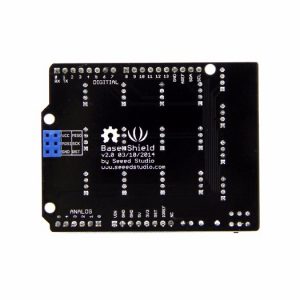

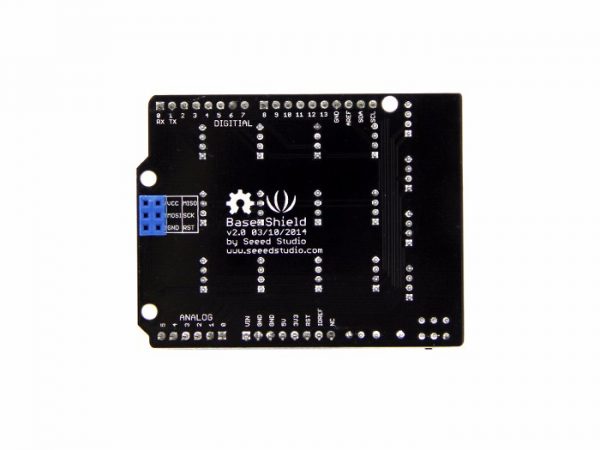

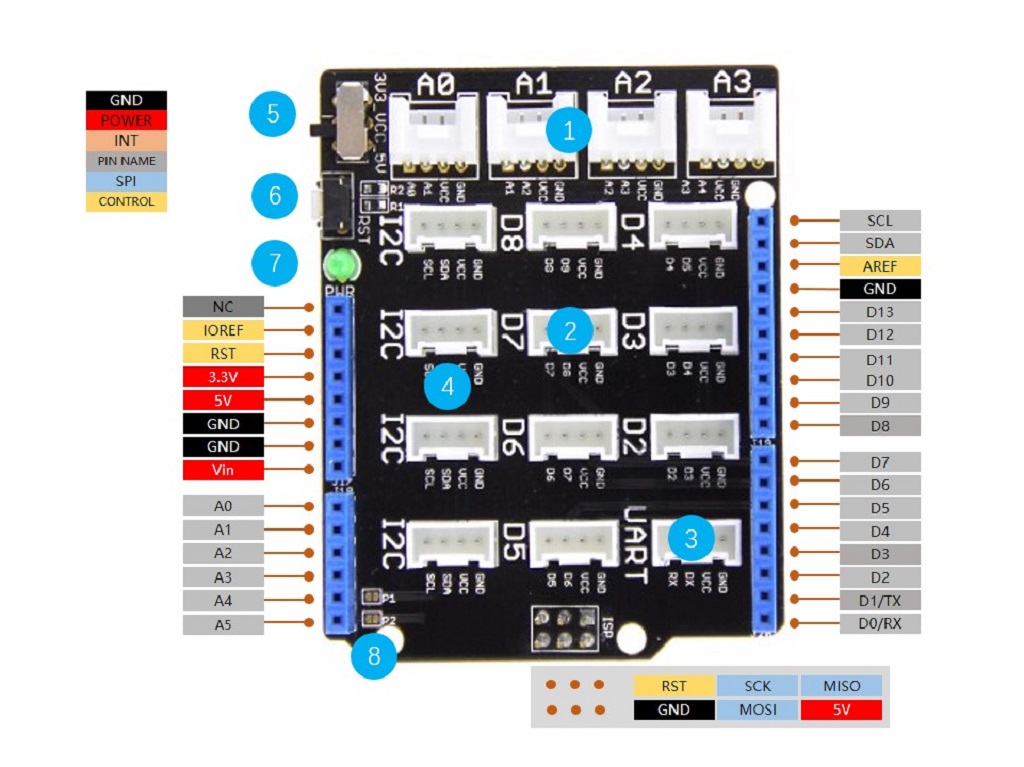

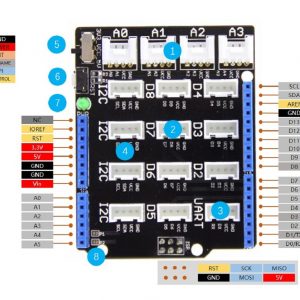

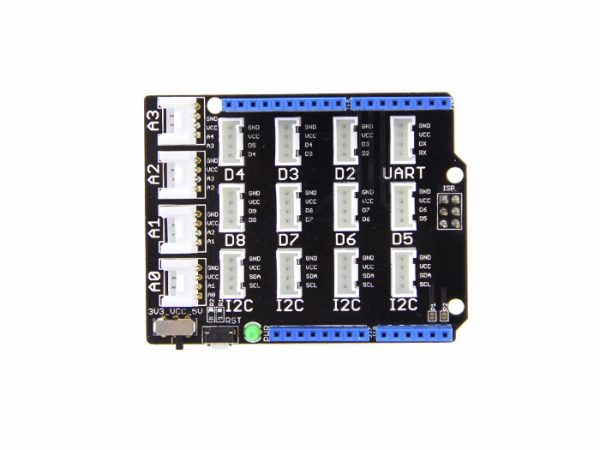

  • 1-模擬端口:包括4個日誌端口,A0,A1,A2和A3。
  • 2個數字端口:包括7個數字端口,D2,D3,D4,D5,D6,D7和D8。
  • 3-UART端口:1個UART端口。
  • 4-I2C端口:4個I2C端口。
  • 5電源開關:使用Arduino UNO和Base Shield v2時,請將開關置於5v位置; 使用Seeeduino Arch和Base Shield v2時,請將開關轉到3.3v。
  • 6重置Buton:重置arduino板。
  • 7-PWR指示燈:電源打開時,綠色指示燈亮起。

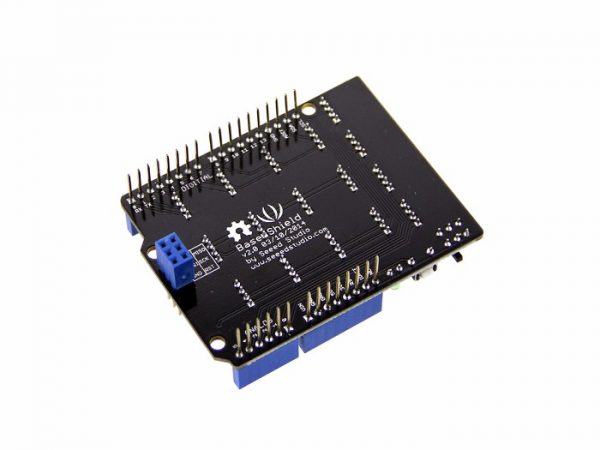

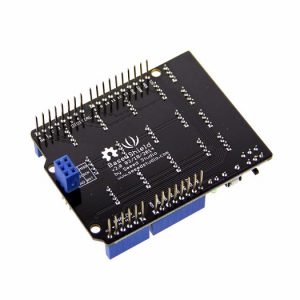

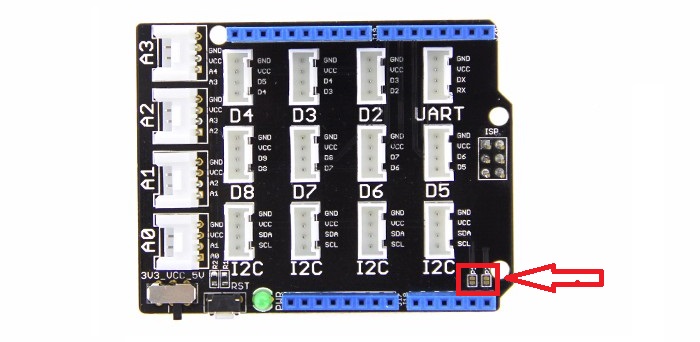

  • 8-P1,P2:如果使用Seeeduino V3使用Base Shield v2,請焊接P1和P2。
  • 尺寸:2.1 * 2.7英寸

Arduino Uno is the most popular Arduino board so far, however it is sometimes frustrating when your project requires a lot of sensors or Leds and your jumper wires are in a mess. The purpose of creating the Grove – Base Shield is to help you getting rid of bread board and jump wires. With the rich grove connectors on the base board, you can add all the grove modules to the Arduino Uno very conveniently!
Features

There are intotal 16 grove connectors on the Base Shield, here we use a table to show the details.

SpecificationNameQty
AnalogA0/A1/A2/A34
DigitalD2/D3D4/D5/D6/D7/D87
UARTUART1
I2CI2C4

Apart from the rich grove connectors, on the board you can also see an RST button, a green LED to indicating power status, ICSP pin, a toggle switch and four row of pinouts. There is no need to explain the RST button and LED, but you really need to know below two features that is very important for your usage.
1.Power Compatible:
Every Grove connector has four wires, one of which is the VCC. However, not every micro-controller main board needs a supply voltage of 5V, some need 3.3V. That’s why we add a power toggle switch to Base Shield v2 so that you can select the suitable voltage of the micro-controller main board you are using via this switch.
For example, if you are using Arduino UNO with Base Shield v2, please turn the switch to 5v position; while using Seeeduino Arch with Base Shield v2, please turn the switch to 3.3v.
2.Board Compatible:
The pinout of Base Shield V2 is the same as Arduino Uno R3, however Arduino Uno is not the board one that the Base Shield V2 is compatible with, here we listed the boards that we have confirmed that can be used with Base Shield V2.

  • Arduino Uno
  • Seeeduino V4.2
  • Arduino Mega / Seeeduino Mega
  • Seeduino LoraWan
  • Arduino Leonardo / Seeeduino Lite
  • Arduino 101
  • Arduino Due
  • Intel Edison
  • Linkit One

Note

  • If using Base Shield v2 with Seeeduino V3, please solder the pads, P1 and P2.



Technical Details

Dimensions69mm x 53mm x 23mm
WeightG.W 25g
BatteryExclude

Part List

Base Shield V21
