香蕉派 Banana Pi BPI-M64 強悍登場 A64 四核 2GB DDR 8GB EMMC 藍牙

-18%

香蕉派 Banana Pi BPI-M64 強悍登場 A64 四核 2GB DDR 8GB EMMC 藍牙

NT$2,300 NT$1,890 (未稅)

Availability: 尚有庫存 貨號: ODB-002335 分類: 標籤: , , , , , ,

描述

香蕉派 Banana Pi BPI-M64 強悍登場 A64 四核 2GB DDR 8GB EMMC 藍牙

香蕉派 Banana Pi BPI-M64 是一塊4核64位單板電腦。其擁有2gb的內存和8gb的emcc,而且板載wifi和藍牙bt。接口方面擁有兩個標準usb接口,一個 otg 接口,一個 hdmi 接口,一個耳麥複合接口和一個直流電源接口。作為比派家族的一員,越過了m4而取名m64,一是m4為之後的16核開發板保留,二是為體現其64位特點。香蕉派作為一個開源設備,更多的面向開發者而不單純是消費級設備。依托舍社區,可以完成更多的想法和功能。我們歡迎所有公司,DIYer和喜歡折騰的玩家加入社區。我們大展拳腳,完成想法,升職加薪出任ceo迎娶白富美走上人生巔峰。

香蕉派 Banana Pi BPI-M64 搭載全志 A64 1.2 Ghz四核ARM Cortex A53 64位處理器, GPU採用雙核500MHz Mali-400 MP2,具有的1.1 gpixel的吞吐量,讓其圖形能力遠高於X-Box的性能水平banana pi BPI-M64由最新的64位四核ARM A53 CPU供電,可提供比其他同行的32位開源開發板高出20%~30%的性能.

BPI-M64 主要配置亮點:

  • 64 位四核ARM Cortex A53 1.2 Ghz CPU
  • 雙核Mali 400 MP2 GPU
  • 板載2G DDR3內存
  • MicroSD卡座,可以從TF卡啟動系統
  • 板載8G eMMC flash,系統可以燒錄到eMMC,從eMMC啟動
  • 板載WIFI與藍牙
  • 支持IR遙控,2USB接口
  • 支持1000M網口
  • 支持Linux和Android 6.0系統

M64 規格

CPU 1.2 Ghz Quad-Core ARM Cortex A53 64-Bit Processor
GPU MALI-400 MP2 @ 500MHz
內存 2GB DDR3 SDRAM (shared with GPU)
存儲支持 MicroSD Card(最大64GB)/SATA(最大2TB USB-to-SATA; GL830)/eMMC(板載8GB)
板載網絡 10/100/1000Mbps ethernet (Realtek RTL8211E/D)
WiFi 802.11 b/g/n (AP6212)
藍牙 BT4.0 (AP6212)
視頻輸入 CSI connector that supports 8-bit YUV422 CMOS sensor CSI, CCIR656 protocol for NTSC and PAL, 5MP camera, 1080p video @30Hz
視頻輸出 HDMI 1.4 with resolutions (upto 4K @24Hz)
MIPI DSI for RAW LCD panels
音頻輸入 板載麥克風
音頻輸出 3.5 mm Jack and HDMI
電源 5V 2A DC port
USB口 2x USB 2.0, USB OTG(Micro USB)
按鍵 重啟鍵, 電源鍵, U-boot鍵
GPIO 40 Pins: GPIO, UART, I2C bus, I2S bus, SPI bus, PWN, +3.3v, +5v, ground
LED Power status Led and RJ45 Led
IR Onboard IR receiver
OS Android and Linux etc.OS
尺寸 92mm x 60mm
重量 45g

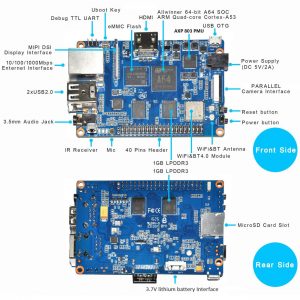

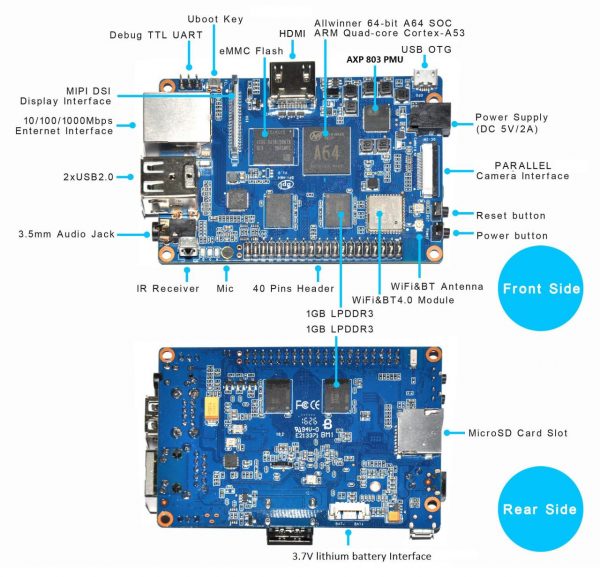

M64 接口

香蕉派 Banana Pi BPI-M64

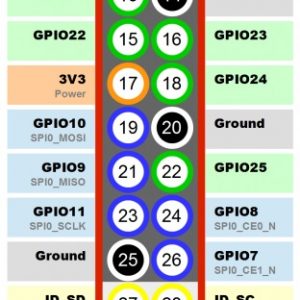

M64 GPIO

香蕉派 Banana Pi BPI-M64

Banana Pi M64

Banana Pi BPI-M64 is a 64-bit quad-core mini single board computer. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M64 has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, and lastly a DC power port. The processor is pin-to-pin comptialbe with R18, so it comes with two versions:M64 and M64-R18.
Also being a member of the Banana Pi family, the M64 is a big jump from the octa-core BPI-M3. This is because this Banana Pi BPI is named after its 64-bit SoC. BPI-M4 will be reserved for an upcoming board
Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.
