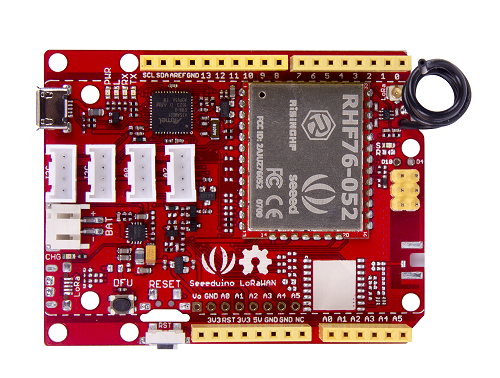

Seeeduino LoRaWAN W/GPS Arduino開發板

-3%

Seeeduino LoRaWAN W/GPS Arduino開發板

NT$1,823 NT$1,760 (未稅)

Add to Wishlist
  • 描述
  • 評價 (0)

描述

Seeeduino LoRaWAN W/GPS Arduino開發板

Seeeduino LoRaWAN W / GPS是嵌入了LoRaWan協議和GPS功能的Arduino開發板,您可以通過它快速入門體驗LoRa在物聯網領域的優勢。Seeeduino LoRaWAN基於通信模塊RHF76-052AM,與LoRaWAN Class A / C兼容,支持多種通信頻率。4個板載標準Grove連接器使Seeeduino LoRaWan可以方便地與Seeeduino的數百個Grove傳感器和執行器連接,因此用戶可以更專注於應用程序本身,而不用擔心不同模塊之間的兼容性問題。

此外,該主板還內置了一個集成的鋰電池管理芯片,可以讓主板通過USB接口進行充電。在低消耗模具中,充滿電的鋰電池可以為電路板供電數月。通過使用Seeeduino LoRaWAN W / GPS,您可以快速構建物聯網應用程序。

特徵

  • LoRaWAN A / C類
  • 超長距離的通訊
  • GPS通信
  • 超低功耗
  • 最小電流(3.7V鋰電池) – 2mA
  • 最小電流(3.7V鋰電池和移除PWR LED) – 80 uA

 阿爾杜伊諾/處理器

  • ATSAMD21G18 @ 48MHz,3.3V邏輯/電源
  • Arduino兼容(基於Arduino Zero引導程序)
  • 內置鋰電池管理芯片和狀態指示燈
  • 20個GPIO
  • 4個板載Grove連接器
  • 18個PWM引腳
  • 6個模擬輸入
  • 1 x模擬輸出(A0)
  • 具有200mA輸出的3.3V穩壓器
  • 復位按鈕

   LoRaWAN / RHF76-052

  • WOR模式下1.45uA的睡眠電流(模塊規格,而不是闆卡)
  • 160dB的高鏈路預算。-140dBm靈敏度和19dBm輸出功率。
  • 雙頻段,434 / 470MHz和868 / 915MHz
  • 19dBm @ 434MHz的/ 470MHz的
  • 14dBm @ 868 / 915MHz的
  • 支持LoRaWAN協議,A / C類
  • 超遠距離通訊
  • 超低功耗
  • 固件升級
  • 小尺寸:23mm x 28mm,採用33引腳SMT封裝

Seeeduino LoRaWAN是嵌入了LoRaWan協議的Arduino開發板,您可以通過它快速入門體驗LoRa在物聯網領域的優勢。基於通信模塊RHF76-052AM,Seeeduino LoRaWAN與LoRaWAN Class A / C兼容,並支持多種通信頻率。

4個板載標準Grove連接器使Seeeduino LoRaWan能夠方便地與Seeedstudio的數百個Grove傳感器和執行器連接,因此,用戶可以更專注於應用程序本身,而無需擔心不同模塊之間的兼容性問題。此外,該主板還內置了一個集成的鋰電池管理芯片,可以通過USB接口為主板充電。在低功耗模式下,充滿電的鋰電池可以為電路板供電數月。

原廠技術文件與範例下載

Seeeduino LoRaWAN W/GPS is an Arduino development board with LoRaWan protocol and GPS function embeded, through which you can get started quickly to experience LoRa’s advantage in the field of IoT.
Based on communication module RHF76-052AM, Seeeduino LoRaWAN is compatible with LoRaWAN Class A/C and supports a variety of communication frequencies. The 4 onboard standard grove connectors allow Seeeduino LoRaWan to connect with hundreds of grove sensors and actuators for Seeeduino conveniently, as a result, users are able to be more focus on the application itself without worrying about the compatibility issue between different modules.
In addition, the board has embeded an integrated lithium battery management chip that allows the board to be charged by USB interface. In low consumption mold, a full charged lithium battery can power the board for several months. By using Seeeduino LoRaWAN W/GPS, you can build an IoT application very quickly.
We also offer another version that without the embedded GPS module, please click here to find the Seeeduino LoRaWAN.
Note:Please update the firmware when the first time to use it. Please always plug 3.7V Lipo battery in case USB power supply is not sufficient.
Features

  • LoRaWAN Class A/C
  • Ultra long range of communication
  • GPS communication
  • Ultra low power consumption
  • Minimum current (3.7V lipo battery) – 2mA
  • Minimum current (3.7V lipo battery & remove PWR LED) – 80 uA

 Arduino/Processor

  • ATSAMD21G18 @ 48MHz with 3.3V logic/power
  • Arduino compatible (based on Arduino Zero bootloader)
  • Embedded with lithium battery management chip and status indicator led
  • 20 GPIOs
  • 4 on-board Grove connectors
  • 18 x PWM pins
  • 6 x analog inputs
  • 1 x analog output (A0)
  • 3.3V regulator with 200mA output
  • Reset button

   LoRaWAN/RHF76-052

  • 1.45uA sleep current in WOR mode (Spec of the modules, not the board)
  • High link budget of 160dB. -140dBm sensitivity and 19dBm Output power.
  • Dual band, 434/470MHz and 868/915MHz
  • 19dBm@434MHz/470MHz
  • 14dBm@868MHz/915MHz
  • Support LoRaWAN protocol, Class A/C
  • Ultra long range communication
  • Ultra low power consumption
  • Firmware upgrade
  • Small size: 23mm X 28mm with 33 pin SMT package

Specifications

ItemValue
MicrocontrollerATSAMD21G18, 32-Bit ARM Cortex M0+
Operating Voltage3.3V
Digital I/O Pins20
PWM PinsAll but pins 2 and 7
UART2 (Native and Programming)
Analog Input Pins6, 12-bit ADC channels
Analog Output Pins1, 10-bit DAC
External InterruptsAll pins except pin 4
DC Current per I/O Pin7 mA
Flash Memory256 KB
SRAM32 KB
EEPROMNone
Clock Speed48 MHz
Lenght68 mm
Width53 mm
Weight19.6g(without GPS), 19.9(with GPS)

Technical Details

Dimensions140mm x 76mm x 26mm
WeightG.W 42.5g
BatteryExclude

Part List

Seeeduino LoRaWAN W/GPS1
Antenna1
