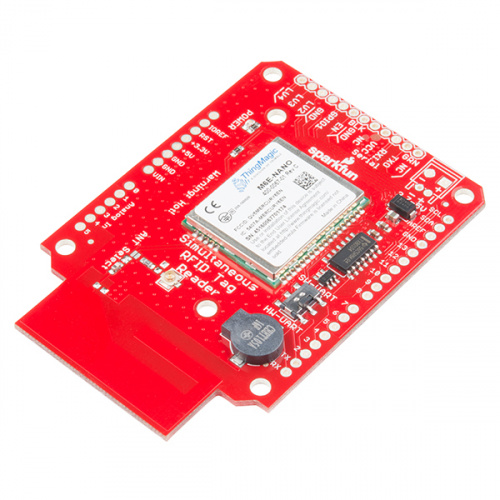

M6E Nano 高功率 Simultaneous UHF RFID 讀取器 SparkFun 原裝進口

-5%

M6E Nano 高功率 Simultaneous UHF RFID 讀取器 SparkFun 原裝進口

NT$6,600 NT$6,280 (未稅)

Availability: 尚有庫存 (允許無庫存下單) 貨號: SEN-14066 分類: 標籤: , , , , , , , , ,
Add to Wishlist
  • 描述
  • 評價 (0)

描述

M6E Nano 高功率 Simultaneous UHF RFID 讀取器 SparkFun 原裝進口 SparkFun 原裝進口

M6E Nano 高功率 Simultaneous UHF RFID 讀取器 SparkFun 原裝進口 是一款兼容Arduino的主板,可幫助您開始使用 M6E Nano UHF RFID 閱讀器。射頻識別(RFID)隨處可見,幾乎​​可以跟踪所有內容。無論您是想通過在工具箱中添加RFID閱讀器來開始使用所有工具上的標籤,還是允許您進入秘密社團會議的樹屋,這個 M6E Nano 高功率 Simultaneous UHF RFID 讀取器 SparkFun 原裝進口 適合您!

利用Arduino屏蔽覆蓋區,您可以將其直接連接到Arduino兼容板或不同的微控制器。您還可以使用板上的FTDI接頭直接連接到計算機,並使用Universal Reader Assistant讀取數據。

一旦你開始,這個板將讀取EPCglobal Gen 2標籤(參見推薦產品),每秒最多150個標籤。在標準寫入80毫秒時也可以寫入標籤。該板具有0dBm至27dBm的可調功率輸出,這意味著使用正確的天線,您可以使用板載天線讀取高達16英尺(4.9米)或1至2英尺的天線。

M6E Nano 高功率 Simultaneous UHF RFID 讀取器 SparkFun 原裝進口

M6E Nano 高功率 Simultaneous UHF RFID 讀取器 SparkFun 原裝進口 產品特色

  • EPCglobal Gen 2(ISO 18000-6C),標稱反向散射率為250kbps
  • 獨立的讀寫電平,命令可在0dBm至27dBm之間調整,步長為0.01 dB
  • 準備模式下為0.84W
  • 關機模式下為0.00025W
  • 高達150個標籤/秒,可讀取96位EPC
  • 標準寫入96位EPC的典型值為80毫秒

技術文件與資源

The SparkFun Simultaneous RFID Reader is an Arduino-compatible board to get you started with the M6E Nano UHF RFID Reader. Radio Frequency Identification (RFID) is becoming popular everywhere for tracking practically everything. Whether you want to get started by adding an RFID reader on your toolbox with tags on all your tools or allowing access to the tree house for your secret society meetings, this board may be for you!

With the Arduino shield footprint, you can connect this directly to an Arduino-compatible board, or a different microcontroller. You can also connect directly to your computer using the FTDI header on the board and read data using the Universal Reader Assistant.

Once you’ve started, this board will read EPCglobal Gen 2 tags (see Recommended Products) at up to 150 tags per second. Writing of tags is also possible at 80msec standard write. The board has adjustable power output from 0dBm to 27dBm, meaning that with the correct antenna you can read up to 16 feet (4.9m), or 1 to 2 feet with the onboard antenna.

Note: Your reader ships with a piece of gray, nonconductive Thermal Gap Filler to help with both heat dissipation and to cover the exposed ground plane (to prevent circuits from shorting against it).

Features

  • EPCglobal Gen 2 (ISO 18000-6C) with nominal backscatter rate of 250kbps
  • Separate read and write levels, command adjustable from 0dBm to 27dBm in 0.01 dB steps
  • 0.84W in ready mode
  • 0.00025W in shutdown mode
  • Up to 150 tags/sec to read 96-bit EPC
  • 80msec typical for standard write of 96-bit EPC
