Grove – EMG Detector 肌電檢測器

-11%

Grove – EMG Detector 肌電檢測器

NT$1,950 NT$1,730 (未稅)

EMG檢測器是一個連接人體和電氣的橋樑,傳感器採集小肌肉信號然後用第2個放大濾波器進行處理,輸出信號可以被Arduino識別。您可以將此信號添加到您的控制系統中。注意:傳感器不能用於醫療目的。在待機模式下,輸出電壓為1.5V。當檢測到肌肉激活時,輸出信號上升,最大電壓為3.3V。您可以在3.3V或5V系統中使用此傳感器。

Availability: 尚有庫存 貨號: SNH-000246 分類: 標籤: , , , , , ,

描述

Grove – EMG Detector 肌肉信號傳感器 肌電檢測器

EMG檢測器是一個連接人體和電氣的橋樑,傳感器採集小肌肉信號然後用第2個放大濾波器進行處理,輸出信號可以被Arduino識別。您可以將此信號添加到您的控制系統中。注意:傳感器不能用於醫療目的。在待機模式下,輸出電壓為1.5V。當檢測到肌肉激活時,輸出信號上升,最大電壓為3.3V。您可以在3.3V或5V系統中使用此傳感器。

特徵

  • Grove兼容
  • 3.5mm連接器
  • 6個一次性表面電極
  • 電源電壓:3.3V-5V
  • 1000mm電纜引線
  • 沒有額外的電源

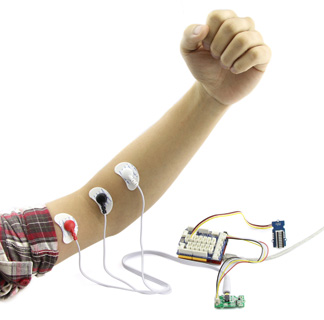

EMG detector is a bridge connects human body and electrical, the sensor gathers small muscle signal then process with 2th amplify and filter, the output signal can be recognized by Arduino. You can add this signal into your control system. Note: The sensor cannot be used for medical purposes.

In standby mode, the output voltage is 1.5V. When detect muscle active, the output signal rise up, the maximum voltage is 3.3V. You can use this sensor in 3.3V or 5V system.
Features
  • Grove Compatible
  • 3.5mm Connector
  • 6 Disposable Surface Electrodes
  • Power supply voltage: 3.3V-5V
  • 1000mm Cable Leads
  • No additional power supply

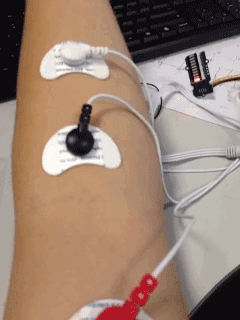

Move
When finish downloading demo code, it’ll take about 5s to initialize, you should keep static when initializing.
You can see that when initializing, the Led Bar will go form level 10 to level 0. When Led Bar All off, you can move now.
When you are moving, you can find that the level of Led Bar will change.

Technical Details

Dimensions 140mm x 100mm x 30mm
Weight G.W 45g
Battery Exclude

Part List

Grove – EMG Detector 1
Grove Cable 1
One-off electrode 6
DC jacket to button connector cable 1000mm 1
