 Arduino MKR1000 物聯網開發板 WIFI 物聯網設備開發 Arduino.cc 原裝進口  Arduino MKR1000 (with Headers)

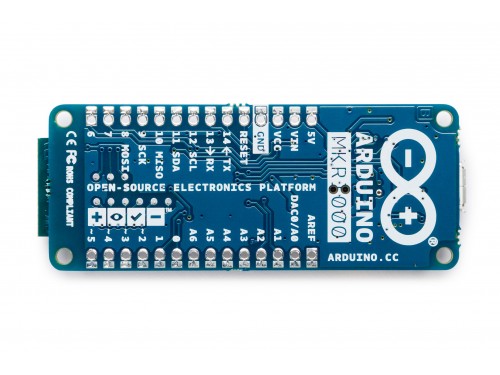

Arduino MKR1000 是一款功能強大的主板,結合了 Arduino Zero 和便捷的 WiFi 屏蔽功能。這種薄型電路板的設計旨在為希望設計物聯網項目的製造商提供實用且經濟高效的解決方案,而這些項目的網絡使用經驗極少。它是基於愛特梅爾® ATSAMW25的SoC(片上系統),這是家庭的 SmartConnect 專門針對物聯網(IOT)的互聯網設計愛特梅爾無線設備的一部分。 Arduino MKR1000 是一款功能強大的主板,結合了Zero和Wi-Fi Shield的功能。對於想要設計物聯網項目的製造商來說,這是理想的解決方案,而且以前的網絡經驗很少。

Arduino MKR1000 設計包含一個 LiPo 充電電路,使 Arduino 夠以電池電源或外部5V電源運行,在外部電源上運行時為LiPo電池充電。從一個源切換到另一個是自動完成的。與Arduino Zero電路板相似的32位計算能力,通常豐富的I / O接口集,具有用於安全通信的Cryptochip的低功耗WiFi以及Arduino集成開發環境(IDE)的易用性代碼開發和編程。所有這些功能都使這款主板成為緊湊型新興IoT電池供電項目的首選。USB端口可用於為電路板供電(5V)。Arduino MKR1000能夠連接或不連接LiPo電池並且功耗有限。

Arduino MKR1000 的設計旨在為尋求向其項目添加Wi-Fi連接的製造商提供實用且經濟高效的解決方案,而且網絡使用經驗極少。它基於Atmel  ATSAMW25  SoC(系統級芯片),它是愛特梅爾無線設備的SmartConnect系列,專為物聯網項目和設備而設計。

ATSAMW25由三個主要部分組成:

  • SAMD21 Cortex-M0 + 32位低功耗ARM MCU
  • WINC1500低功耗2.4GHzIEEE®802.11 b / g / n Wi-Fi
  • ECC508 CryptoAuthentication

ATSAMW25還包括一個1×1流式PCB天線。

該設計包括一個Li-Po充電電路,允許Arduino / Genuino MKR1000以電池電源或外部5V電源運行,在外部電源上運行時為Li-Po電池充電。從一個信號源切換到另一個信號源是自動完成的。具有與Zero板類似的良好32位計算能力  ,通常豐富的I / O接口集,具有用於安全通信的Cryptochip的低功耗Wi-Fi以及易用性用於代碼開發和編程的Arduino軟件(IDE)。所有這些特性使這款主板成為緊湊型外形的新興物聯網電池供電項目的首選.USB端口可用於為主板提供電源(5V)。Arduino MKR1000可帶或不帶鋰電池連接並具有有限的功耗。

特色

  • 微控制器:SAMD21 Cortex-M0 + 32位低功耗ARM MCU
  • 板電源(USB / VIN):5V
  • 電路工作電壓:3.3V
  • 數字I / O引腳:8
  • PWM引腳數:12
  • 閃存:256 KB
  • SRAM:32 KB
  • 全速USB設備和嵌入式主機
  • 帶引腳的預安裝標頭

原廠文件下載

ARDUINO MKR1000 WIFI

Arduino MKR1000 is a powerful board that combines the functionality of the Zero and the Wi-Fi Shield. It is the ideal solution for makers wanting to design IoT projects with minimal previous experience in networking.

ARDUINO MKR1000

Arduino MKR1000 has been designed to offer a practical and cost effective solution for makers seeking to add Wi-Fi connectivity to their projects with minimal previous experience in networking.It is based on the Atmel ATSAMW25 SoC (System on Chip), that is part of the SmartConnect family of Atmel Wireless devices, specifically designed for IoT projects and devices.

The ATSAMW25 is composed of three main blocks:

  • SAMD21 Cortex-M0+ 32bit low power ARM MCU
  • WINC1500 low power 2.4GHz IEEE® 802.11 b/g/n Wi-Fi
  • ECC508 CryptoAuthentication

The ATSAMW25 includes also a single 1×1 stream PCB Antenna.

The design includes a Li-Po charging circuit that allows the Arduino/Genuino MKR1000 to run on battery power or external 5V, charging the Li-Po battery while running on external power. Switching from one source to the other is done automatically.A good 32 bit computational power similar to the Zero board, the usual rich set of I/O interfaces, low power Wi-Fi with a Cryptochip for secure communication, and the ease of use of the Arduino Software (IDE) for code development and programming. All these features make this board the preferred choice for the emerging IoT battery-powered projects in a compact form factor.The USB port can be used to supply power (5V) to the board.The Arduino MKR1000 is able to run with or without the Li-Po battery connected and has limited power consumption.

The MKR1000 Wifi module supports certificate SHA-256.

Li-Po batteries, Pins and board LEDs

Battery capacity

Li-Po batteries are charged up to 4,2V with a current that is usually half of the nominal capacity (C/2). For Arduino / Genuino MKR1000 we use a specialized chip that has a preset charging current of 350mAh. This means that the MINIMUM capacity of the Li-Po battery should be 700 mAh. Smaller cells will be damaged by this current and may overheat, develop internal gasses and explode, setting on fire the surroundings. We strongly recommend that you select a Li-Po battery of at least 700mAh capacity. A bigger cell will take more time to charge, but won’t be harmed or overheated. The chip is programmed with 4 hours of charging time, then it goes into automatic sleep mode. This will limit the amount of charge to max 1400 mAh per charging round.

Battery connector

If you want to connect a battery to your MKR1000 be sure to search one with female 2 pin JST PHR2 Type connector.Polarity : looking at the board connector pins, polarity is Left = Positive, Right = GNDDownload here the Connector datasheet. On the MKR1000, connector is a Male 2pin JST PH Type.VinThis pin can be used to power the board with a regulated 5V source. If the power is fed through this pin, the USB power source is disconnected. This is the only way you can supply 5v (range is 5V to maximum 6V) to the board not using USB. This pin is an INPUT.5VThis pin outputs 5V from the the board when powered from the USB connector or from the VIN pin of the board. It is unregulated and the voltage is taken directly from the inputs. When powered from battery it supplies around 3.7 V. As an OUTPUT, it should not be used as an input pin to power the board.

VCC

This pin outputs 3.3V through the on-board voltage regulator. This voltage is the same regardless the power source used (USB, Vin and Battery).

LED ON

This LED is connected to the 5V input from either USB or VIN. It is not connected to the battery power. This means that it lits up when power is from USB or VIN, but stays off when the board is running on battery power. This maximizes the usage of the energy stored in the battery. It is therefore normal to have the board properly running on battery power without the LED ON being lit.

CHARGE LED

The CHARGE LED on the board is driven by the charger chip that monitors the current drawn by the Li-Po battery while charging. Usually it will lit up when the board gets 5V from VIN or USB and the chip starts charging the Li-Po battery connected to the JST connector.There are several occasions where this LED will start to blink at a frequency of about 2Hz. This flashing is caused by the following conditions maintained for a long time (from 20 to 70 minutes):- No battery is connected to JST connector.- Overdischarged/damaged battery is connected. It can’t be recharged.- A fully charged battery is put through another unnecessary charging cycle. This is done disconnecting and reconnecting either VIN or the battery itself while VIN is connected.

Onboard LED

On MKR1000 the onboard LED is connected to D6 and not D13 as on the other boards. Blink example or other sketcthes that uses pin 13 for onboard LED may need to be changed to work properly.
