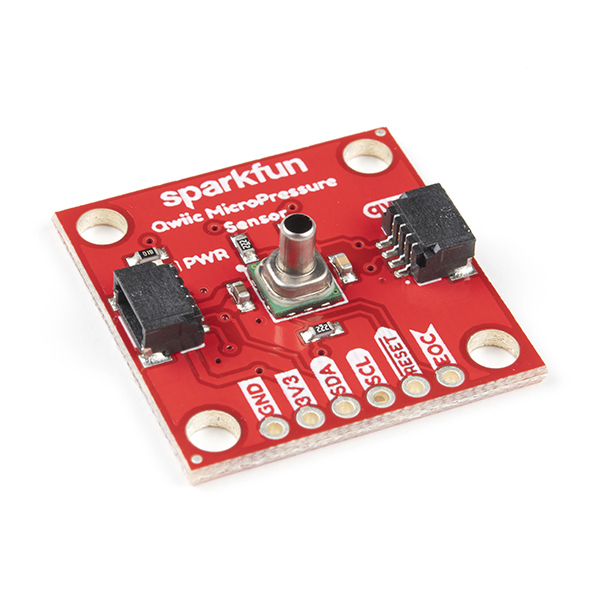

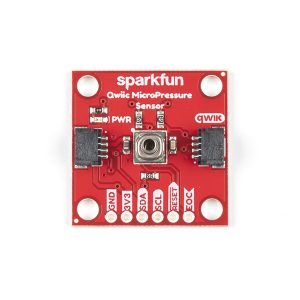

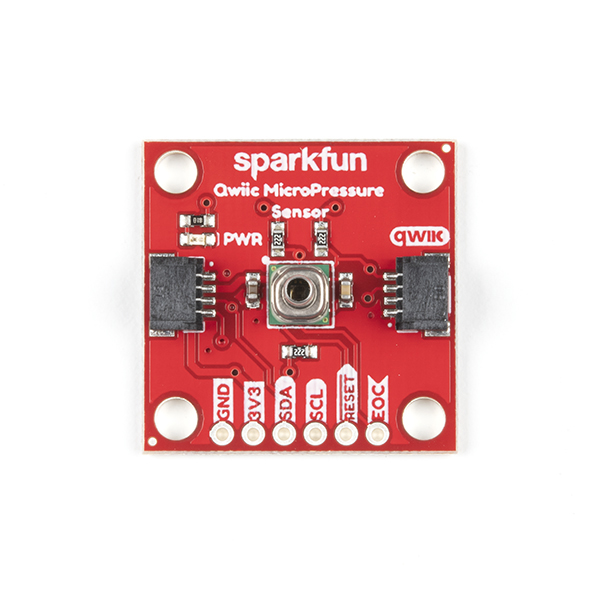

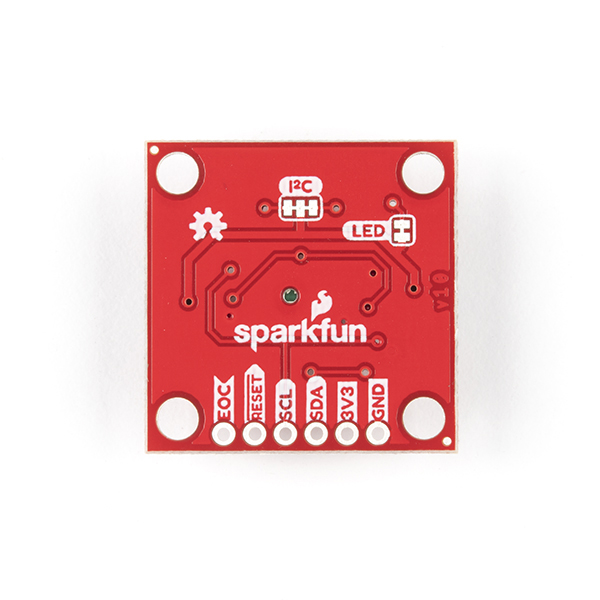

SparkFun Qwiic MicroPressure Sensor 微壓力感測器 I2C 通訊 矽壓阻式壓力傳感器

SparkFun Qwiic MicroPressure Sensor 微壓力感測器 是一款微型突破口,配備了Honeywell 的25psi 壓阻矽壓力傳感器。這款 MicroPressure 傳感器提供了60mbar至2.5bar的校準和補償壓力感應範圍,易於讀取的24位數字I 2 C輸出,並且可以在特定溫度範圍內進行校準和補償,以實現傳感器偏移,靈敏度,溫度影響和非使用板載專用集成電路(ASIC)的線性度。憑藉其超低的功耗和Qwiic端口,您已經擁有了一個充滿電源的小傳感器!

每個 SparkFun Qwiic MicroPressure Sensor 微壓力感測器 的校準壓力感應範圍為1-25psi,典型功耗低至0.01mW。平均功率,1Hz的測量頻率,具有極高的便攜性。SparkFun Qwiic MicroPressure傳感器用於多種醫療(血壓監測,負壓傷口療法),工業(空氣製動系統,煤氣表和水錶)和消費類用途(咖啡機,加濕器,氣墊床,洗衣機,洗碗機)。

硬體規格

  • 壓力類型:絕對壓力
  • 工作壓力:25psi(172.37kPa)
  • 2 C地址:0x18
  • 準確度:±0.25%
  • 電壓-電源:1.8V-3.6V
  • 端口尺寸:公頭-0.1英寸(2.5毫米)管
  • 港口風格:倒鉤
  • 最高壓力:60psi(413.69kPa)
  • 兼容多種液體介質
  • 2個Qwiic連接器

資源與文件

The SparkFun Qwiic MicroPressure Sensor is a miniature breakout equipped with Honeywell’s 25psi piezoresistive silicon pressure sensor. This MicroPressure Sensor offers a calibrated and compensated pressure sensing range of 60mbar to 2.5bar, easy to read 24 bit digital I2C output, and can be calibrated and compensated over a specific temperature range for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). With its ultra-low power consumption and Qwiic ports, you’ve got yourself a power packed little sensor!

Each Qwiic MicroPressure Sensor has a calibrated pressure sensing range from 1-25psi and a power consumption rate as low as 0.01mW typ. average power, 1Hz measurement frequency for ultimate portability. Used in multiple medical (blood pressure monitoring, negative pressure wound therapy), industrial (air braking systems, gas and water meters), and consumer uses (coffee machines, humidifiers, air beds, washing machines, dishwashers), the SparkFun Qwiic MicroPressure Sensor is a great addition to the SparkFun Qwiic ecosystem!


The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Features

  • Pressure Type: Absolute
  • Operating Pressure: 25psi (172.37kPa)
  • I2C Address: 0x18
  • Accuracy: ±0.25%
  • Voltage – Supply: 1.8V-3.6V
  • Port Size: Male – 0.1″ (2.5mm) Tube
  • Port Style: Barbless
  • Maximum Pressure: 60psi (413.69kPa)
  • Compatible with a variety of liquid media
  • 2x Qwiic Connectors
