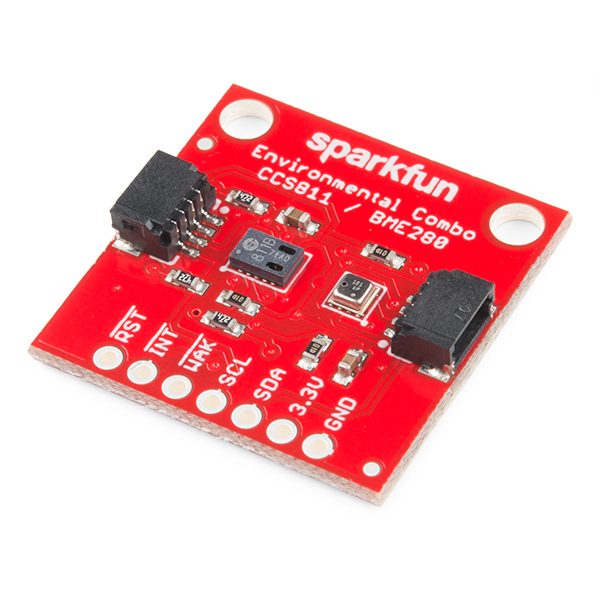

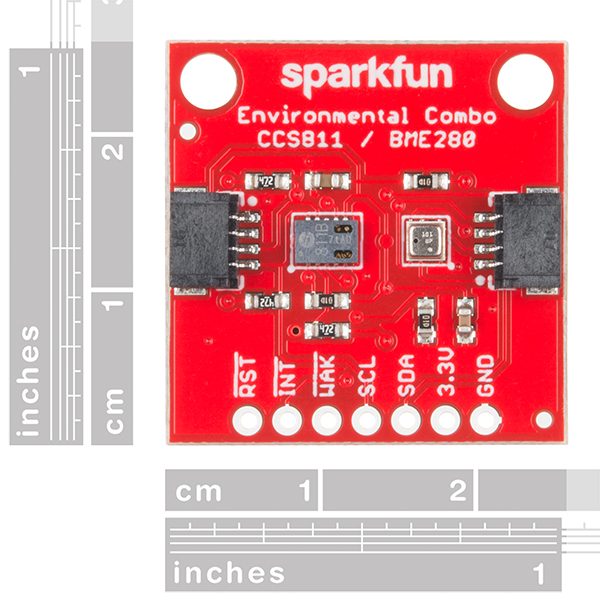

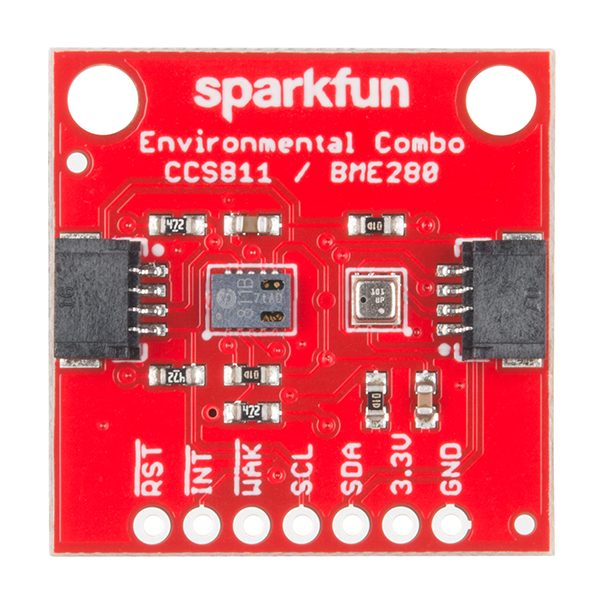

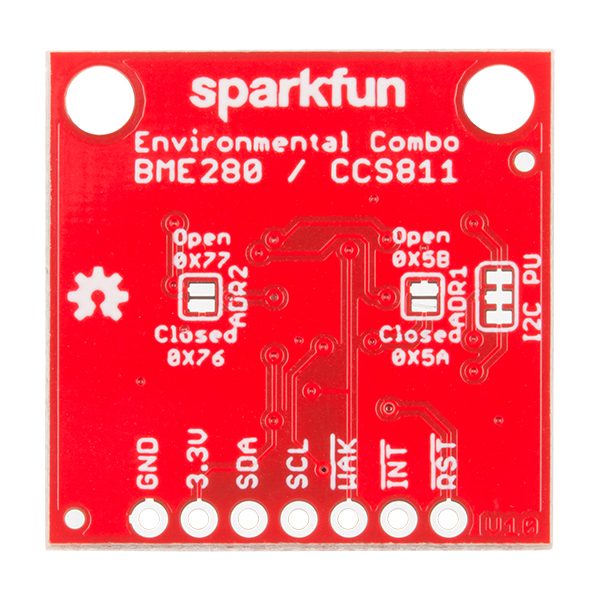

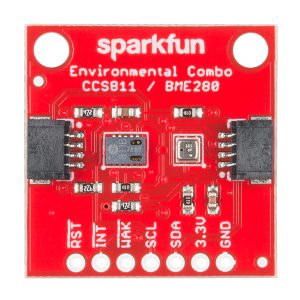

SparkFun Environmental Combo Breakout – CCS811/BME280 (Qwiic)

-6%

SparkFun Environmental Combo Breakout – CCS811/BME280 (Qwiic)

NT$1,463 NT$1,380 (未稅)

  • Qwiic-Connector Enabled
  • Operation Voltage: 3.3V
  • Total Volatile Organic Compound (TVOC) sensing from 0 to 1,187 parts per billion
  • eCO2 sensing from 400 to 8,192 parts per million
  • Temp Range: -40C to 85C
  • Humidity Range: 0–100% RH, =-3% from 20–80%
  • Pressure Range: 30,000Pa to 110,000Pa, relative accuracy of 12Pa, absolute accuracy of 100Pa
  • Altitude Range: 0 to 30,000 feet (9.2 km), relative accuracy of 3.3 feet (1m) at sea level, 6.6 (2m) at 30,000 feet
Availability: 尚有庫存 貨號: IMU-000690 分類: , 標籤: , , , , , , , ,
Add to Wishlist
  • 描述
  • 評價 (0)

描述

SparkFun Environmental Combo Breakout – CCS811/BME280 (Qwiic) 美國 SparkFun 原裝進口

SparkFun CCS811 / BME280環境組合分流器使用廣受歡迎的CCS811和BME280集成電路處理您所有的大氣質量傳感需求。這種獨特的突破提供了多種環境數據,包括氣壓,濕度,溫度,TVOCs和等效的CO 2(或ECO 2)的水平。為了更容易使用這個突破,所有的通信都是通過I 2 C 完全通過我們方便的Qwiic系統來實現的。但是,如果您喜歡使用麵包板,我們仍然會打出0.1英寸的間距引腳。

的CCS811是一個極其受歡迎傳感器,提供等效CO讀數2(或ECO 2在十億分之(PPB)以每百萬(ppm)份數和總揮發性有機化合物)。CCS811還具有一個功能,如果能夠訪問當前的濕度和溫度,就可以對其讀數進行微調。幸運的是,BME280提供了濕度,溫度和氣壓!這可以讓傳感器一起工作,給我們更準確的讀數,而不是他們自己能夠提供的。我們也很容易通過I 2 C 與他們進行交互。

  • Qwiic連接器啟用
  • 工作電壓:3.3V
  • 總揮發性有機化合物(TVOC)感應從0到1176十億分之十
  • eCO 2感應從400到8,192百萬分之一
  • 溫度範圍:-40℃至85℃
  • 濕度範圍:0-100%RH,從20-80%= -3%
  • 壓力範圍:30,000Pa至110,000Pa,相對精度12Pa,絕對精度100Pa
  • 海拔高度範圍:0至30,000英尺(9.2公里),相對精度為3.3英尺(1米),海平面為6.6(2米),30,000英尺

原廠技術文件與範例



SparkFun Environmental Combo Breakout – CCS811/BME280 (Qwiic)

The SparkFun CCS811/BME280 Environmental Combo Breakout takes care of all your atmospheric-quality sensing needs with the popular CCS811 and BME280 ICs. This unique breakout provides a variety of environmental data, including barometric pressure, humidity, temperature, TVOCs and equivalent CO2 (or eCO2) levels. To make it even easier to use this breakout, all communication is enacted exclusively via I2C, utilizing our handy Qwiic system. However, we still have broken out 0.1″ spaced pins in case you prefer to use a breadboard. The CCS811 is an exceedingly popular sensor, providing readings for equivalent CO2 (or eCO2) in the parts per million (PPM) and total volatile organic compounds in the parts per billion (PPB). The CCS811 also has a feature that allows it to fine-tune its readings if it has access to the current humidity and temperature. Luckily for us, the BME280 provides humidity, temperature and barometric pressure! This allows the sensors to work together to give us more accurate readings than they’d be able to provide on their own. We also made it easy to interface with them via I2C.


The SparkFun Qwiic connect system is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.


Get Started with the Environmental Combo Breakout Guide

規格與特色

  • Qwiic-Connector Enabled
  • Operation Voltage: 3.3V
  • Total Volatile Organic Compound (TVOC) sensing from 0 to 1,187 parts per billion
  • eCO2 sensing from 400 to 8,192 parts per million
  • Temp Range: -40C to 85C
  • Humidity Range: 0–100% RH, =-3% from 20–80%
  • Pressure Range: 30,000Pa to 110,000Pa, relative accuracy of 12Pa, absolute accuracy of 100Pa
  • Altitude Range: 0 to 30,000 feet (9.2 km), relative accuracy of 3.3 feet (1m) at sea level, 6.6 (2m) at 30,000 feet
