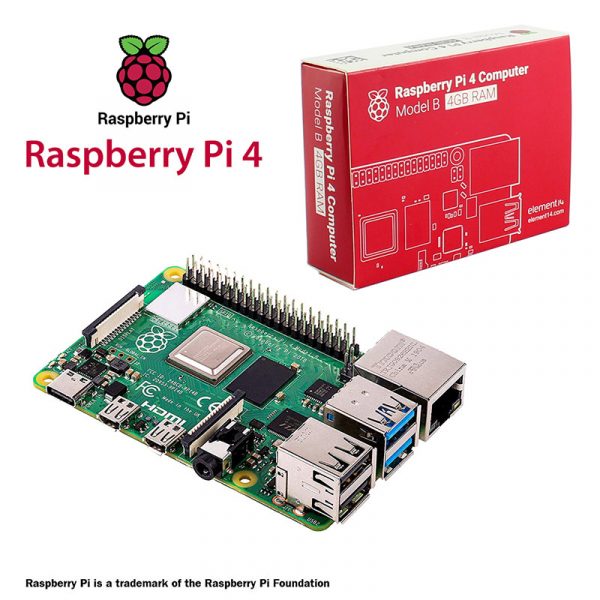

Raspberry Pi 4 Model B – 4GB 樹莓派第 4 代 單板電腦

-7%

Raspberry Pi 4 Model B – 4GB 樹莓派第 4 代 單板電腦

NT$2,250 NT$2,100 (未稅)

樹莓派最新發布的第四代產品 Raspberry Pi 4 B, 性能與樹莓派3B+相比無論是處理器速度,還是多媒體和內存上都有顯著提升。Raspberry Pi 4 B擁有與入門級x86 PC 系統相媲美的桌面性能,給您帶來高品質體驗。Raspberry Pi 4 B 具備1.5Ghz運行的64位四核處理器,最高支援以60fps 速度刷新的4K解析度的雙顯示屏,高達4GB RAM(可根據型號選擇1GB、2GB、4GB),2.4/5.0 Ghz雙頻無線LAN,藍牙5.0/BLE,千兆乙太網,USB3.0,和PoE功能。

Availability: 尚有庫存 貨號: RPI-006544 分類: 標籤: , , , , , ,
  • 描述
  • 評價 (0)

描述

Raspberry Pi 4 Model B – 4GB v1.2 樹莓派第 4 代 單板電腦

樹莓派最新發布的第四代產品 Raspberry Pi 4 B, 性能與樹莓派3B+相比無論是處理器速度,還是多媒體和內存上都有顯著提升。Raspberry Pi 4 B擁有與入門級x86 PC 系統相媲美的桌面性能,給您帶來高品質體驗。Raspberry Pi 4 B 具備1.5Ghz運行的64位四核處理器,最高支援以60fps 速度刷新的4K解析度的雙顯示屏,高達4GB RAM(可根據型號選擇1GB、2GB、4GB),2.4/5.0 Ghz雙頻無線LAN,藍牙5.0/BLE,千兆乙太網,USB3.0,和PoE功能。

Raspberry Pi 4 Model B with 4GB RAM

相關文檔

技術規格

  • 處理器:博通BCM2711,四核Cortex-A72、64位SoC、主頻1.5GHz
  • 1GB、2GB或4GB LPDDR4 SDRAM(取決於型號)
  • 連接性:雙頻IEEE 802.11ac無線+藍牙5.0,千兆以太網,2×USB 3.0、2×USB 2.0端口
  • GPIO:向前兼容樹莓派的標準40針引腳
  • 視頻和聲音:2×micro-HDMI輸出(4kp60或4kp30)

2通道MIPI DSI顯示端口

2通道MIPI CSI攝像頭端口

4極立體聲音頻和復合視頻端口

  • 多媒體:HEVC / H.265(4kp60 解碼)

AVC / H.264(1080p60解碼/ 1080p30編碼)

OpenGL ES 3.0 GPU

  • 存儲:Micro SD卡槽,用於加載操作系統和數據存儲
  • 電源輸入:5V DC(USB-C、3A)、GPIO接頭支持5V DC @ 3A、或以太網供電(需單獨的PoE HAT)
  • 5V 3A電源輸入

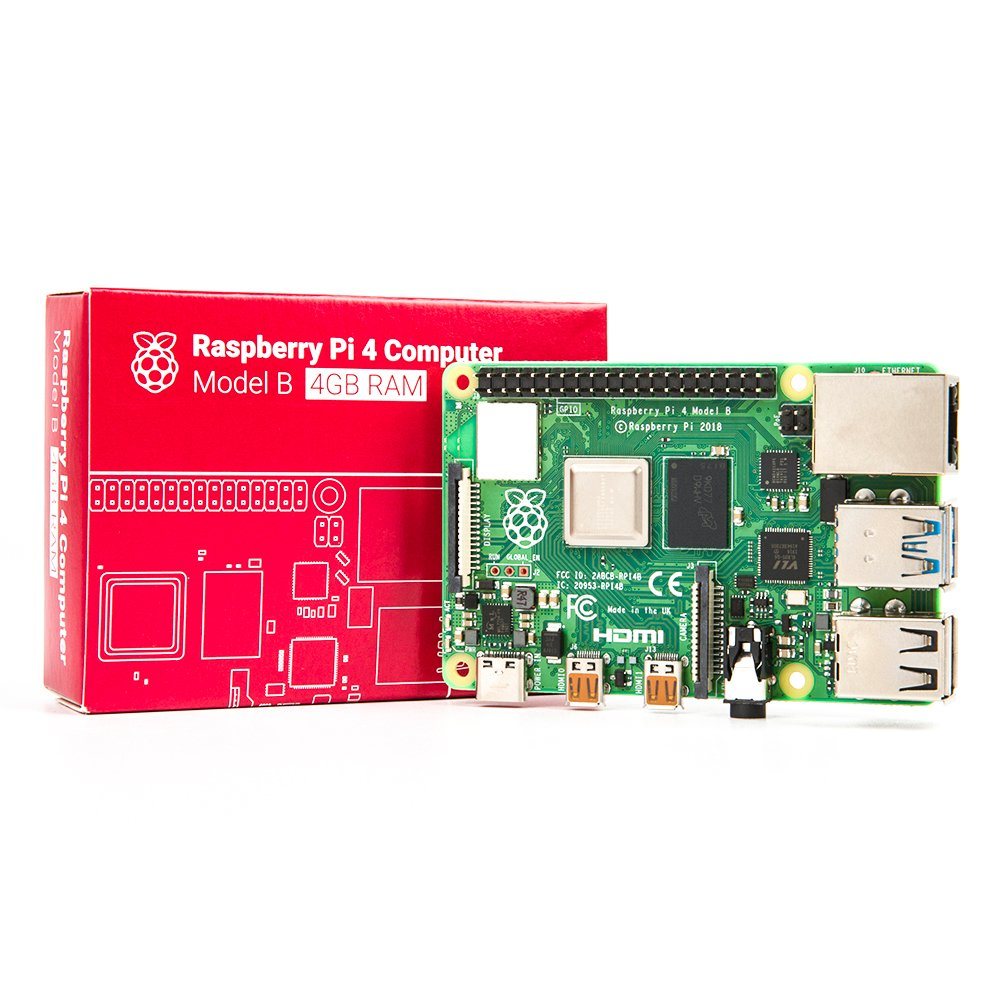

Raspberry Pi 4 Model B (4 GB)

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.

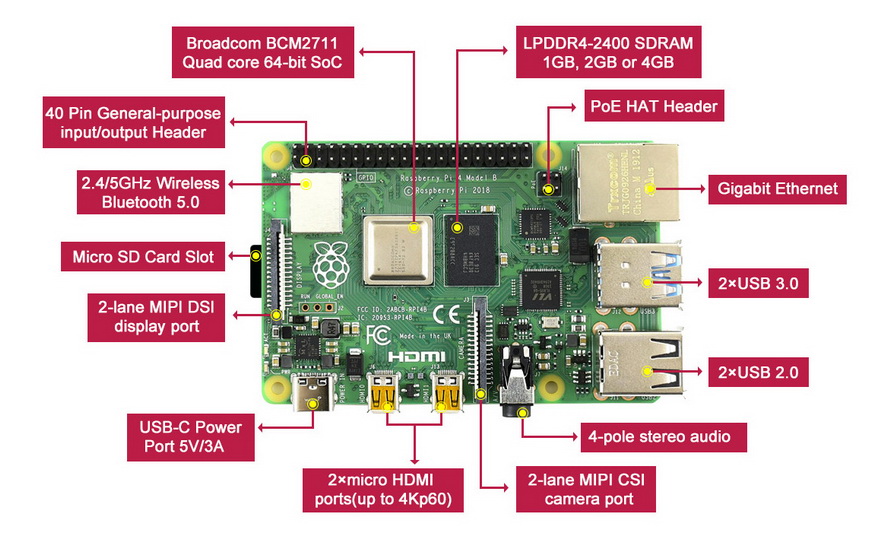

Features

This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, 4GB of RAM, dual-band 2.4/5.0GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on). The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.
  • Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • 4GB LPDDR4 SDRAM
  • 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE
  • True Gigabit Ethernet
  • 2x USB 3.0 ports, 2x USB 2.0 Ports
  • Fully backwards compatible 40-pin GPIO header
  • 2x Micro HDMI ports supporting up to 4K 60Hz video resolution
  • 2-lane MIPI DSI/CSI ports for camera and display
  • 4-pole stereo audio and composite video port
  • MicroSD card slot for loading operating system and data storage
  • Requires 5.1V, 3A power via USB-C or GPIO
  • PoE (Power over Ethernet) enabled (requires PoE HAT)
Raspberry Pi 4 Completely Upgraded

More Powerful Processor, Richer Multi-Media Capability, Faster Networking

  • BCM2711B0

    64-bit 1.5GHz Quad-core Processor

  • Choice Of RAM

    1GB / 2GB / 4GB

  • 4K Dual HDMI

    4K High Resolution Dual Displays

  • Faster Networking

    Gigabit ETH, Bluetooth 5.0, Dual-band WiFi

  • New USB3.0

    2xUSB3.0 + 2xUSB2.0

  • USB-C Power

    Upgraded Power Supply, More Powerful

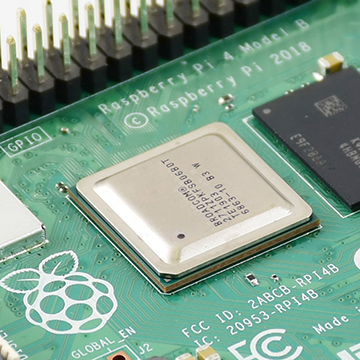

BCM2711B0
64-Bit Quad-Core Processor
  • Cortex-A72
    ARM Architecture
  • 64-bit
    Quad-core
  • 1.5GHz
    Frequency

Faster, more powerful CPU
Provides smooth experience like X86 desktop PC

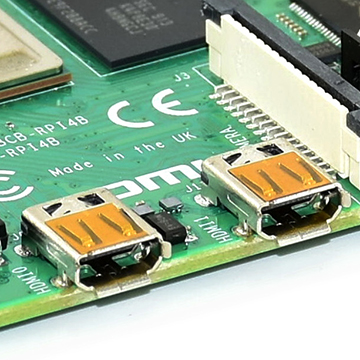

4K Ultra High Definition
Dual Micro HDMI

Upgrade to dual micro HDMI instead of a full size HDMI
Dual displays, up to 60fps refreshing rate

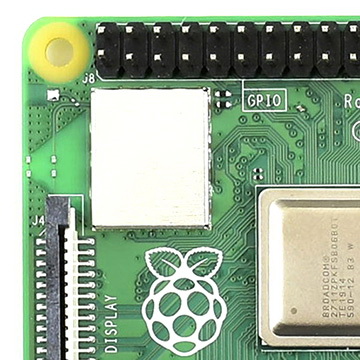

Bluetooth 5.0 BLE
2.4G / 5G Dual-Band WIFI

Upgraded Bluetooth 5.0 BLE, better performance
Dual-band WIFI, along with the Gigabit Ethernet
Better connectivity, faster and more stable networking

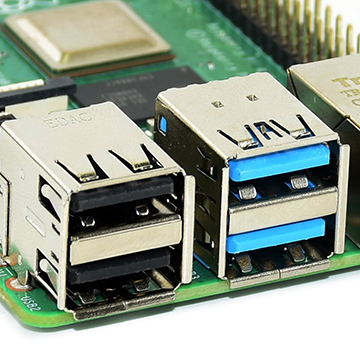

New USB3.0 Ports
Faster Data Transmission

2xUSB 3.0 + 2xUSB 2.0
No more trouble when connecting with high speed devices

Applications

Your Tiny, Dual-Display, Desktop Computer
…And Robot Brains, Smart Home Hub, Media Center, Game Console…

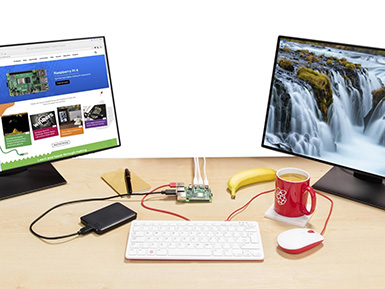

tiny dual-display desktop (balance work and life)

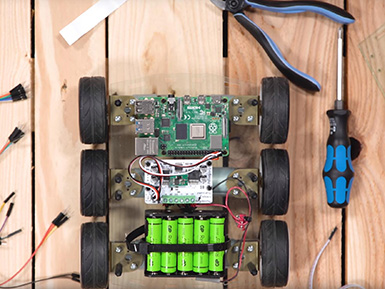

Raspberry Pi smart robot (try the AI magic)

Raspberry Pi game console (relive retro games)

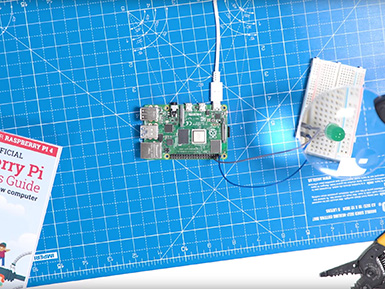

Study and development (DIY endless possibilities)
