MyoWare Muscle Sensor Development Kit 肌電感測器開發套件

-21%

MyoWare Muscle Sensor Development Kit 肌電感測器開發套件

NT$3,346 NT$2,650 (未稅)

Add to Wishlist
  • 描述
  • 評價 (0)

描述

MyoWare Muscle Sensor Development Kit 肌電感測器開發套件

用我們的肌肉來控制事物是我們大多數人習慣於這樣做的方式。我們按下按鈕,拉動槓桿,移動操縱桿……但是如果我們可以把按鈕,槓桿和操縱桿拿出來呢?這是MyoWare肌肉傳感器開發套件,這是一款Arduino驅動的肌電圖(EMG)傳感器套件,可為您提供 MyoWare 肌肉傳感器,SparkFun 的每個 MyoWare 防護罩以及將它們連接在一起所需的一切。

該套件中包含的MyoWare板通過測量肌肉的過濾和矯正電活動來起作用; 根據所選肌肉中的活動量輸出0V電壓,其中Vs表示電源的電壓。連接這個套件非常簡單,將屏蔽層連接到肌肉傳感器上,粘在幾個電極上,讀出電壓並彎曲一些肌肉!此套件還包括設置MyoWare肌肉傳感器所需的一切:所有相關的屏蔽(電源,電纜,LED和Proto),生物醫學傳感器墊和電纜,以及可焊接到每個屏蔽上的接頭,以便它們可以被連接在一起。請確保閱讀下面的“MyoWare肌肉傳感器套件指南”,了解組裝MyoWare電路板的提示,技巧和最佳實踐。為了簡化堆疊,MyoWare肌肉傳感器開發套件包括3針可堆疊接頭。在所有的屏蔽上使用這些,可以在更多的配置中輕鬆堆疊。

注意: Power Shield和LED Shield都提供電源,但電壓略有不同。不要同時使用這兩個屏蔽。

開始使用MYOWARE肌肉傳感器套件指南

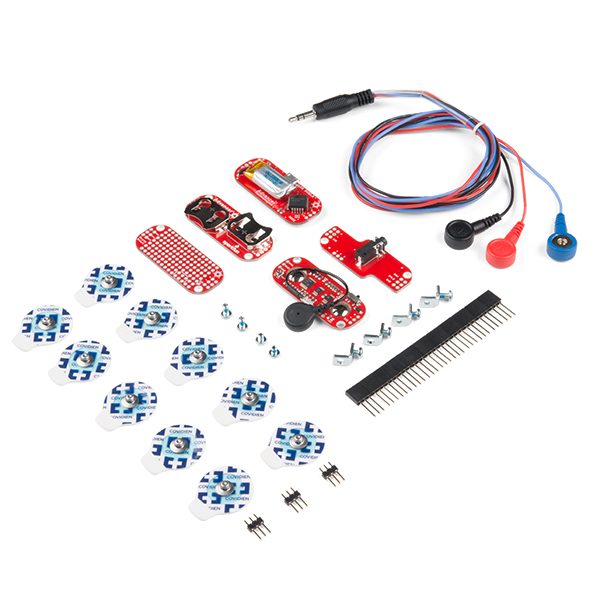

 出貨清單:
  • 1個MyoWare肌肉傳感器
  • 1x MyoWare電源屏蔽
  • 1個MyoWare電纜屏蔽
  • 1個MyoWare LED屏蔽
  • 1x MyoWare Proto Shield
  • 1x 傳感器電纜 – 3連接器
  • 10倍生物醫學傳感器墊
  • 11x 可堆疊接頭 – 3針,母頭
  • 3x 接線 – 3 Pin,公頭

MyoWare Muscle Sensor Development Kit

Using our muscles to control things is the way that most of us are accustomed to doing it. We push buttons, pull levers, move joysticks…but what if we could take the buttons, levers and joysticks out of the equation? This is the MyoWare Muscle Sensor Development Kit, an Arduino-powered, electromyography (EMG) sensor kit that provides you with a MyoWare Muscle Sensor, each MyoWare shield developed here at SparkFun, and everything you need to connect them all together. The MyoWare board included in this kit acts by measuring the filtered and rectified electrical activity of a muscle; outputting 0-Vs Volts depending on the amount of activity in the selected muscle, where Vs signifies the voltage of the power source. It’s very simple to hook up this kit, attach shields to the muscle sensor, stick on a few included electrodes, read the voltage out and flex some muscles! Also included in this kit is everything you need to set up the MyoWare Muscle Sensor: all associated shields (Power, Cable, LED and Proto), biomedical sensor pads and cable, as well as headers that can be soldered onto each shield so they can be attached together. Make sure to take a look at our MyoWare Muscle Sensor Kit Guide below for tips, tricks and best practices for assembling your MyoWare boards. To make stacking easier, the MyoWare Muscle Sensor Development Kit includes 3-pin stackable headers. Using these on all of the shields allows for easy stacking in more configurations. Note: The Power Shield and the LED Shield both provide power, but at slightly different voltages. Don’t use both of these shields at the same time. Note: This item may take longer to process due to battery installed in the equipment and therefore does not qualify for our same-day shipping policy. Additionally, these batteries cannot be shipped via Ground or Economy methods to Alaska or Hawaii. Sorry for any inconvenience this may cause.

Get Started with the MyoWare Muscle Sensor Kit Guide

出貨內容

  • 1x MyoWare Muscle Sensor
  • 1x MyoWare Power Shield
  • 1x MyoWare Cable Shield
  • 1x MyoWare LED Shield
  • 1x MyoWare Proto Shield
  • 1x Sensor Cable — 3 Connector
  • 10x Biomedical Sensor Pad
  • 11x Stackable Header — 3 Pin, Female
  • 3x Header — 3 Pin, Male

原廠技術文件與範例
