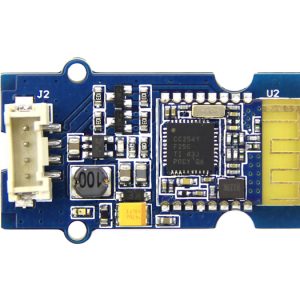

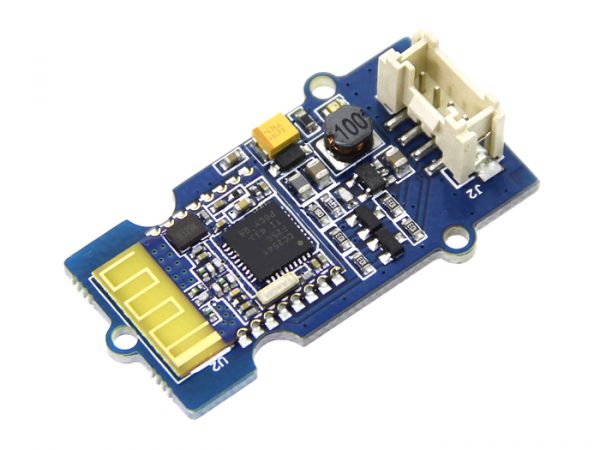

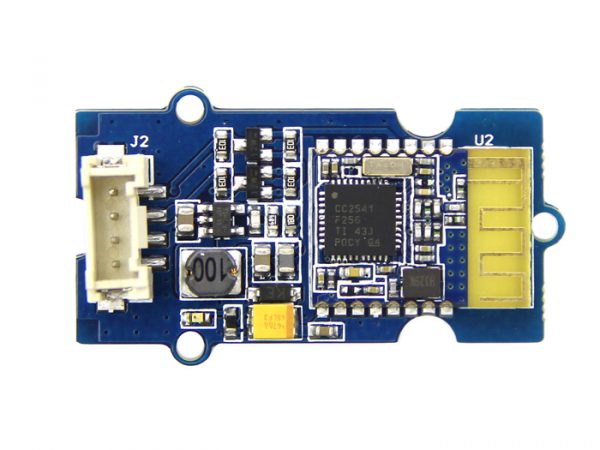

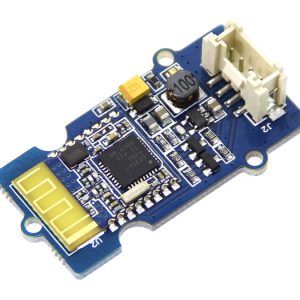

Grove – BLE HM-11 低功耗串口藍芽模組

NT$637 NT$515 (未稅)

Grove – BLE 使用 HM-11 模組為您的 Arduino / Seeeduino 提供串行BLE功能,如果與 Base Shield 一起使用,它可以非常方便地與 Arduino / Seeeduino一起使用。通過支持 BLE ComAssistant APK,該 Grove – BLE可以在不進行配對的情況下更輕鬆地與您的手機進行通話,當然也可以直接通過AT命令進行設置。您可以在許多條件下使用它,例如機器人控製或遙控設備等。

Availability: 客訂商品無現貨 貨號: WRB-000597 分類: 標籤: , , , , , , , , , , , , , ,

描述

Grove – BLE HM-11 低功耗串口藍芽模組

Grove – BLE 使用 HM-11 模組為您的 Arduino / Seeeduino 提供串行BLE功能,如果與 Base Shield 一起使用,它可以非常方便地與 Arduino / Seeeduino一起使用。通過支持 BLE ComAssistant APK,該 Grove – BLE可以在不進行配對的情況下更輕鬆地與您的手機進行通話,當然也可以直接通過AT命令進行設置。您可以在許多條件下使用它,例如機器人控製或遙控設備等。

參數

產品規格 名稱
BT版本 藍牙規範V4.0 BLE
工作頻率 2.4GHz ISM頻段
調製方法 GFSK(高斯頻移鍵控)
射頻功率 -23dbm,-6dbm,0dbm,6dbm,可以通過AT命令AT + POWE進行修改
速度 異步:6K字節,同步:6K字節
靈敏度 BER在0.1%時≤-84dBm
安全 認證和加密
服務 中央和外圍UUID FFE0,FFE1
供電 3.3v – 5v
工作溫度 -5〜+65攝氏度
尺寸 40厘米x 20厘米
工作電流 <10 mA
採購當前 <20 mA
睡眠電流 <1 mA

我們為這個產品準備了一個簡單而方便的命令集,以便您可以使用簡潔明了的代碼來運行該功能。

引腳

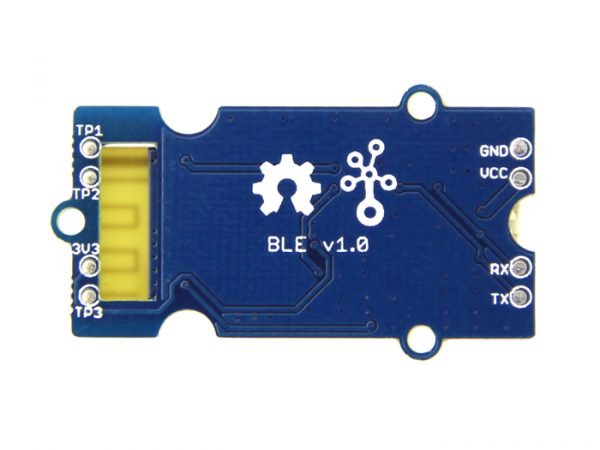

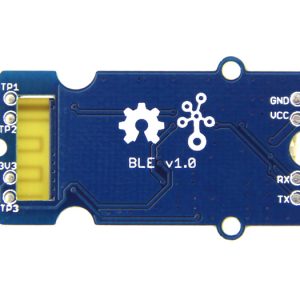

Grove連接器有四根導線:GND,VCC,RX,TX。

設計的特點

我們使用TD6810芯片作為穩壓器,所以供電範圍可以是3.3v到5v。此外,還有一個電平轉換電路,確保數據傳輸的準確性。

AT命令

1)查詢模組地址

發送:AT + ADDR?

接收:OK + LADD:地址

2)查詢波特率

發送:AT +波特?

接收:OK +送:[PARA1]

範圍:0〜8; 0-9600,1-19200,2-38400,3-57600,4-115200,5-4800,6-2400,7-1200,8-230400

默認值:0-9600。

設置波特率

發送:AT +波特率[PARA1]

接收:OK +套裝:[PARA1]

例如:發送:AT + BAUD1,接收:OK +設置:1。波特率設置為19200

更多原廠技術文件與範例下載

Grove – BLE v1 HM-11 CC2540 (Grove – Bluetooth Low Energy)

This Grove – BLE utilizes an HM-11 module to provide your Arduino/Seeeduino with serial BLE function, and it can be used with Arduino/Seeeduino very conveniently if using with Base Shield together. With support for a BLE ComAssistant APK, this Grove – BLE can talk to your mobile phone more easily without pairing, and of course, it can be set via AT commands directly. You can use it in many conditions, like robot controls or remote control equipment ,etc. We prepared an easy and convenient command set for this product so that you can use neat and concise code to run the function.  DocumentsPlease visit our wiki page for more info about this product.

Technical Details

Dimensions 130mm x 90mm x 11.5mm
Weight G.W 9g
Battery Exclude

Part List

Grove – BLE 1
