DHT11 溫溼度感測器模組 溫度+濕度 雙重感測

-28%

DHT11 溫溼度感測器模組 溫度+濕度 雙重感測

NT$69 NT$50 (未稅)

Availability: 尚有庫存 貨號: SNT-002035 分類: 標籤: , , , , , , , , ,
Add to Wishlist
  • 描述
  • 評價 (0)

描述

DHT11 溫溼度感測器模組 溫度+濕度 雙重感測

  • 1. 可以檢測周圍環境的濕度和溫度
  • 2. 傳感器採用DHT11
  • 3. 濕度測量範圍:20%-95%(0度-50度範圍)濕度測量誤差:+-5%
  • 4. 溫度測量範圍:0度- 50度溫度測量誤差:+-2度
  • 5. 工作電壓3.3V-5V
  • 6. 輸出形式數字輸出
  • 7. 設有固定螺栓孔,方便安裝
  • 8. 小板PCB尺寸:3.2cm * 1.4cm
  • 9. 每套重量約為8g

二模塊接口說明(3線製)

  1. VCC外接3.3V-5V
  2. GND外接GND
  3. DO小板開關數字量輸出接口接單片機IO口

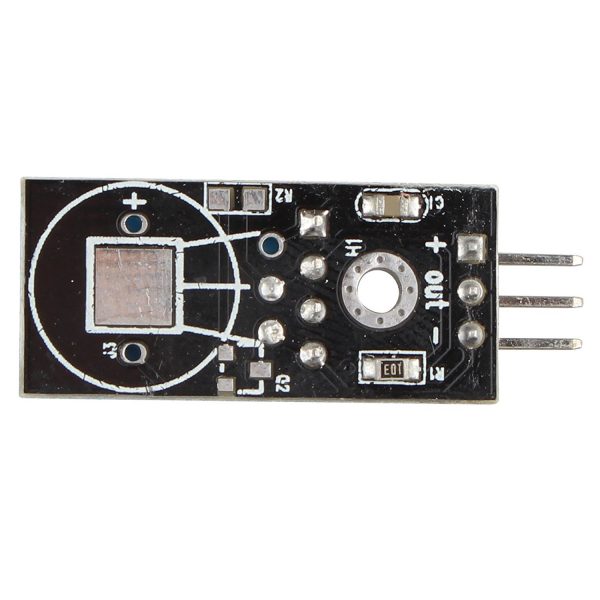

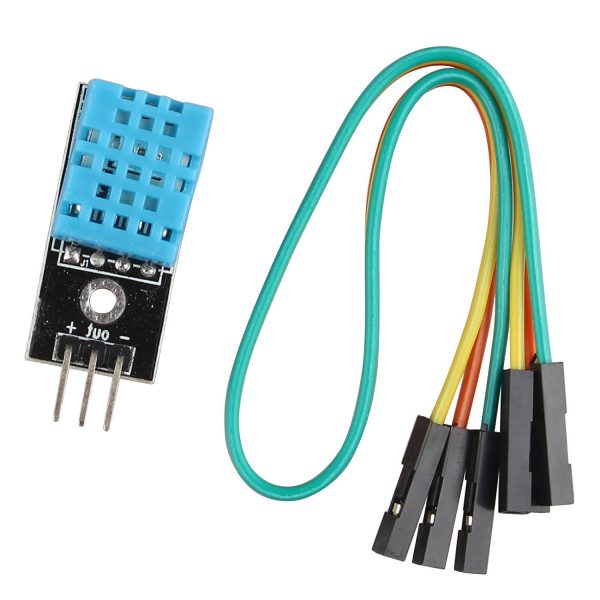

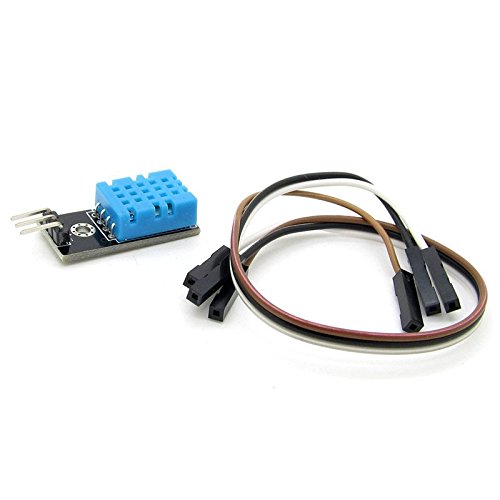

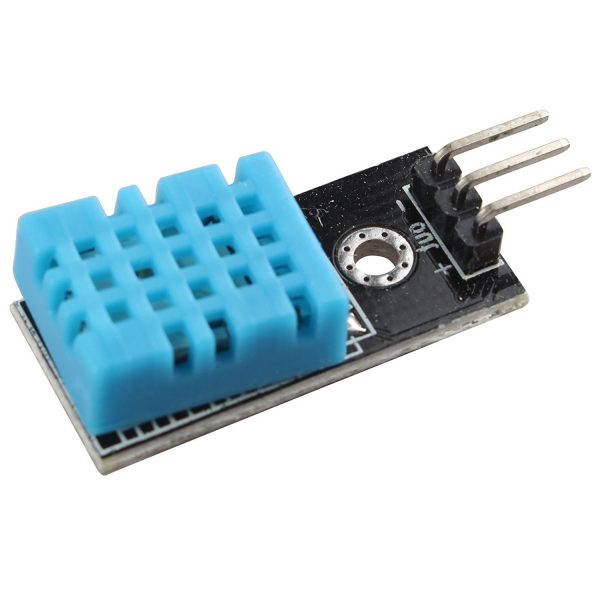

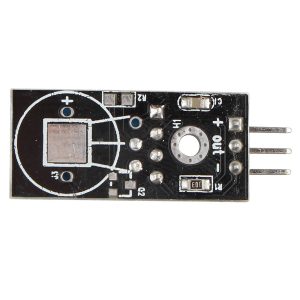

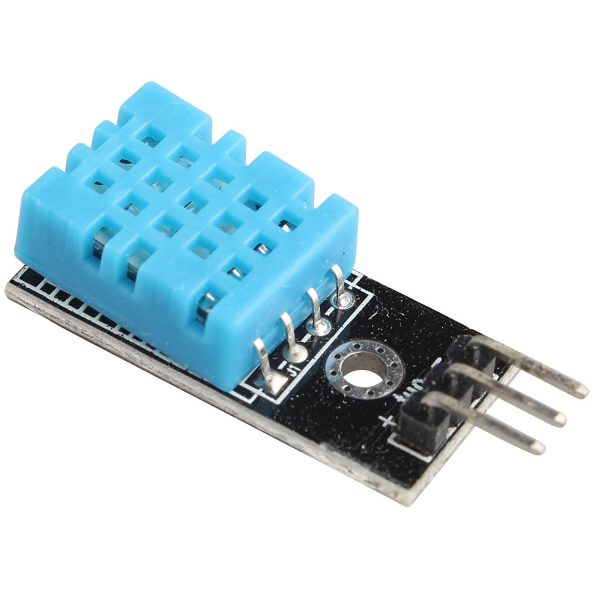

DHT11 溫溼度感測器模組



DHT11 Digital Temperature Humidity Sensor Module

  • The sensor module is including resistive humidity sensing component and NTC temperature testing.
  • The compatible digital temperature humidity sensor module is component and connected with 8-byte MCU.
  • This is useful module is fast response, great anti-interference ability and durable.
  • Signal transmission range: 20m
  • Temperature range: 0-50’C, Humidity range: 20-90%RH

The sensor module is including resistive humidity sensing component and NTC temperature testing. The compatible digital temperature humidity sensor module is component and connected with 8-byte MCU. This is useful module is fast response, great anti-interference ability and durable.

  • Black panel
  • Sensor including resistive humidity sensing component and NTC temperature testing component and connect with 8-byte MCU
  • Fast response, great anti-interference ability and durable
  • Signal transmission range: 20m
  • Power: 5V
  • Temperature range: 0-50’C
  • Humidity range: 20-90%RH
