Arduino UNO R3 原廠正版 Arduino UNO Rev 3 開發板 含壓克力底板


Arduino UNO R3 原廠正版 Arduino UNO Rev 3 開發板 含壓克力底板

NT$980 NT$910 (未稅) 新版非庫存 本公司銷售的 Arduono uno r3 為 2020 年 二月份批號 由 美國出貨的新版本PCB 非印刷 之前的庫存品

Availability: 尚有庫存 貨號: DEV-11021 分類: 標籤: , , , , , , , , , ,
  • 描述
  • 評價 (0)

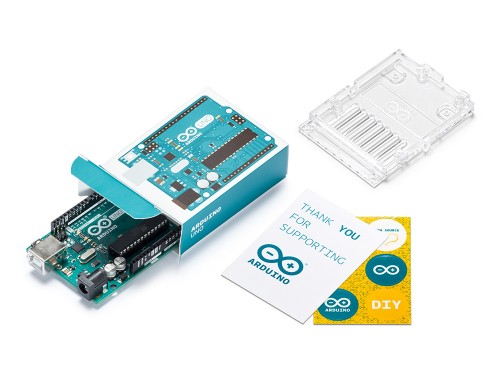

Arduino UNO R3 原廠正版 Arduino UNO Rev 3 開發板 含壓克力底板 原廠出貨

Arduino UNO R3 是開始使用電子和編碼的最佳選擇。如果這是您第一次使用該平台進行修補的經驗,UNO是您可以開始玩的最強大的主板。 Arduino UNO R3 是整個 Arduino家族中使用者最多,技術資源最多的開發板之一。 這是最新 2020 年原廠新出的Arduino Uno R3。除了上一代電路板的所有功能之外,Uno現在使用ATmega16U2而不是Uno上的8U2(或前幾代的FTDI)。這允許更快的傳輸速率和更多的內存。Linux或Mac不需要驅動程序(需要Windows的inf文件並包含在Arduino IDE中),並且可以將Uno顯示為鍵盤,鼠標,操縱桿等。

Arduino UNO R3 義大利原裝 Arduino UNO Rev3 開發板 含壓克力底板 2018 新版非庫存 本公司銷售的 Arduono uno r3 為 2018 年由 出貨的新版本PCB 非 庫存品

Arduino UNO R3 義大利原裝 Arduino UNO Rev3 開發板 含壓克力底板 2018 新版非庫存 本公司銷售的 Arduono uno r3 為 2018 年由 出貨的新版本PCB 非 庫存品

Arduino Uno R3 還在AREF旁增加了SDA和SCL引腳。另外,在RESET引腳附近還有兩個新引腳。一個是允許屏蔽適應電路板提供的電壓的IOREF。另一個是未連接的,為未來的目的而保留。Uno R3適用於所有現有的屏蔽,但可以適應使用這些附加引腳的新屏蔽。Arduino是一個開源的物理計算平台,基於一個簡單的I / O板和一個實現處理 / 佈線語言的開發環境。Arduino可以用來開發獨立的交互對象,或者可以連接到計算機上的軟件(例如Flash,Processing,MaxMSP)。開源IDE可以免費下載(目前用於Mac OS X,Windows和Linux)。

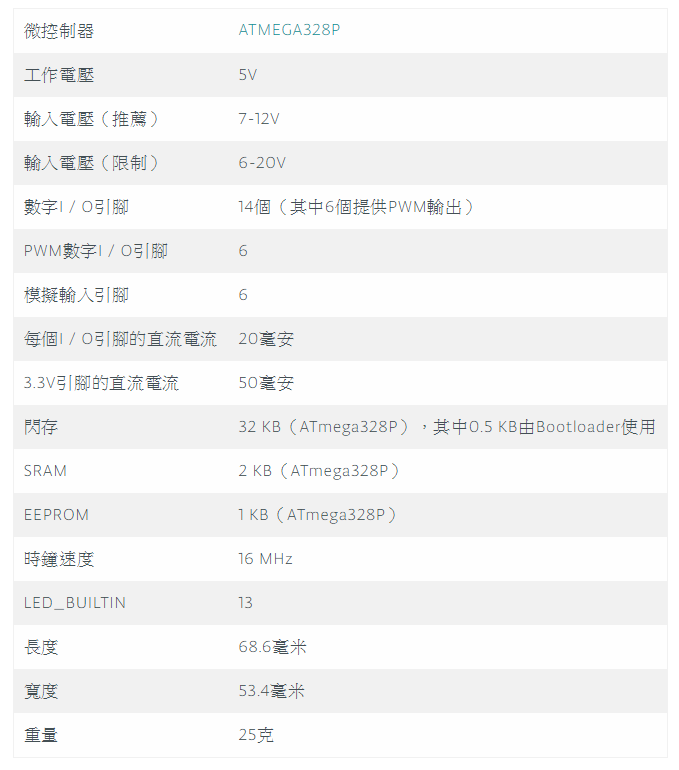

Arduino UNO Rev3 開發板

Arduino UNO R3 義大利原裝 Arduino UNO Rev33 開發板 新版含壓克力底板

  • ATmega328微控制器
  • 輸入電壓 – 7-12V
  • 14個數字I / O引腳(6個PWM輸出)
  • 6個模擬輸入
  • 32k閃存
  • 16Mhz時鐘速度

Arduino Uno  R3 是一款基於ATmega328P(數據表)的微控制器板。它具有14個數字輸入/輸出引腳(其中6個可用作PWM輸出),6個模擬輸入,一個16 MHz石英晶體,一個USB連接,一個電源插孔,一個ICSP插頭和一個複位按鈕。它包含支持微控制器所需的一切; 只需使用USB電纜將其連接到計算機,或者使用AC-to-DC適配器或電池為其開啟電源即可開始工作..您可以修補UNO,而不必擔心錯誤,最糟糕的情況是您可以更換籌碼幾美元,然後重新開始。

“Uno”意為意大利語,並被選為標誌Arduino Software(IDE)1.0的發布。Uno電路板和Arduino Software(IDE)1.0版是Arduino的參考版本,現在已經發展到更新的版本。Uno電路板是一系列USB Arduino電路板中的第一個,也是Arduino平台的參考模型


This is the new Arduino Uno Rev 3. In addition to all the features of the previous board, the Arduino Uno Rev 3 now uses an ATmega16U2 instead of the 8U2 found on the Uno (or the FTDI found on previous generations). This allows for faster transfer rates and more memory. No drivers needed for Linux or Mac (inf file for Windows is needed and included in the Arduino IDE), and the ability to have the Uno show up as a keyboard, mouse, joystick, etc.


The Arduino Uno R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is not connected and is reserved for future purposes. The Arduino Uno R3 works with all existing shields but can adapt to new shields which use these additional pins.


Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements the Processing/Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).
The UNO is the best board to get started with electronics and coding. If this is your first experience tinkering with the platform, the UNO is the most robust board you can start playing with. The UNO is the most used and documented board of the whole Arduino family.

Arduino Uno r3 is a microcontroller board based on the ATmega328P (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.. You can tinker with your UNO without worring too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.

“Uno” means one in Italian and was chosen to mark the release of Arduino Software (IDE) 1.0. The Uno board and version 1.0 of Arduino Software (IDE) were the reference versions of Arduino, now evolved to newer releases. The Uno board is the first in a series of USB Arduino boards, and the reference model for the Arduino platform; for an extensive list of current, past or outdated boards see the Arduino index of boards.

Getting Started

You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.
