直流電壓電流電能感測器模組 DC 0-300V 50A + 分流器 RS485 通信 Modbus協議

-7%

直流電壓電流電能感測器模組 DC 0-300V 50A + 分流器 RS485 通信 Modbus協議

NT$570 NT$530 (未稅)

Availability: 尚有庫存 貨號: VMD-005008-50A 分類: 標籤: , , , , , ,
    • 150 NT$
Add to Wishlist
  • 描述
  • 評價 (0)

描述

直流電壓電流電能感測器模組 DC 0-300V 50A + 分流器 RS485 通信 Modbus協議

產品規格:
測量精度:1.0級
工作溫度:-20℃〜+ 60℃
通訊端口:RS485
電源:DC
認證:CE,FCC

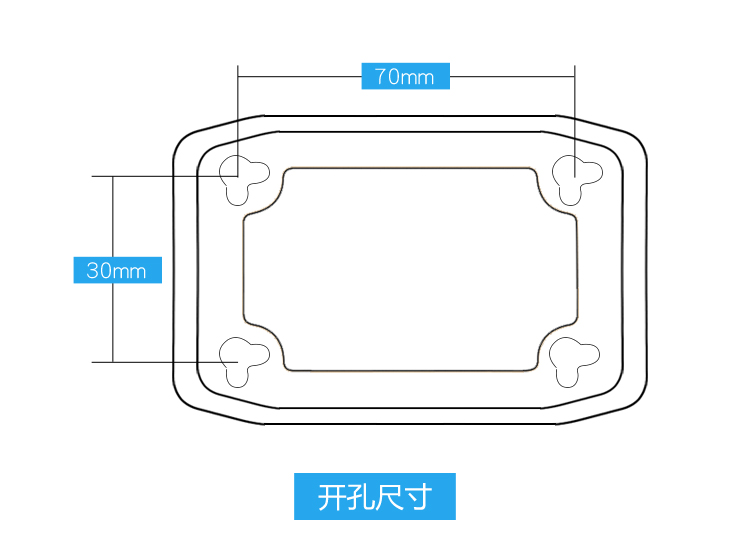

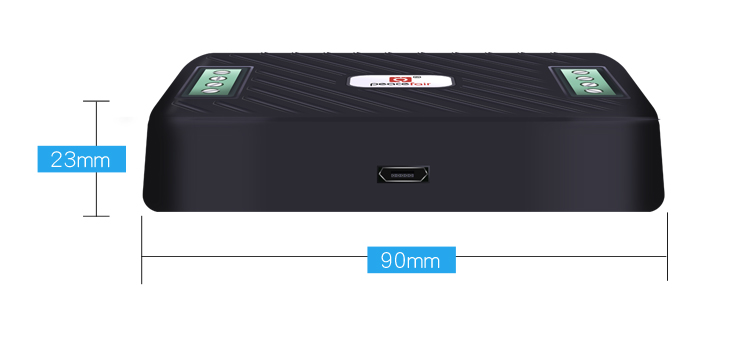

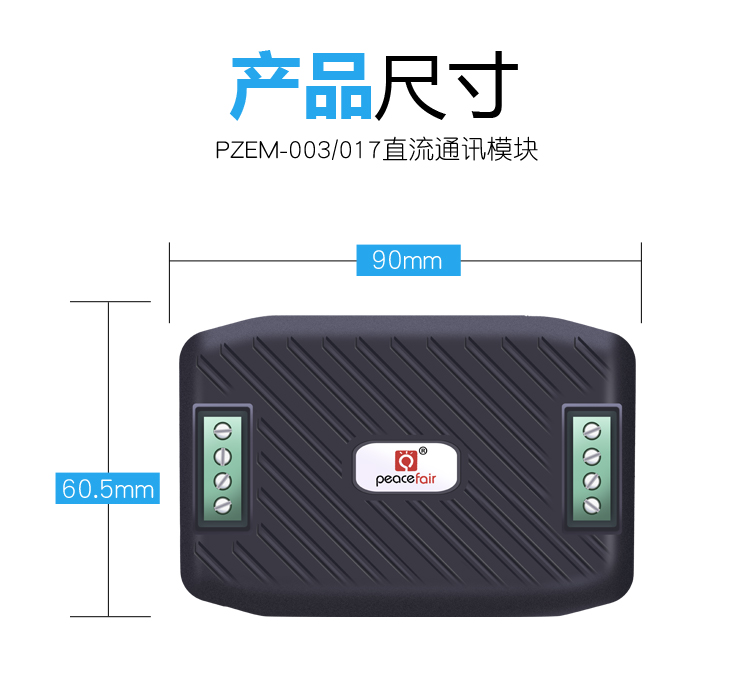

尺寸:90 * 60.5 *23毫米(L * W * H)
功能和顯示格式:
電壓
1.測量範圍:0.05-300V。(當測試電壓為7V時,請使用獨立供電模式)
分辨率:0.01V。
2.測量精度:1%。
當前
1.測量範圍:0.01-10A(PZEM-003)
2.分辨率:0.01A
3.測量精度:1%
功率
1.測量範圍:0.1-3kW(PZEM-003)
2.分辨率:0.1W
3.測量精度:1%
能源消耗
1.測量範圍:0-9999kWh
2.分辨率:1Wh
3.測量精度:1%

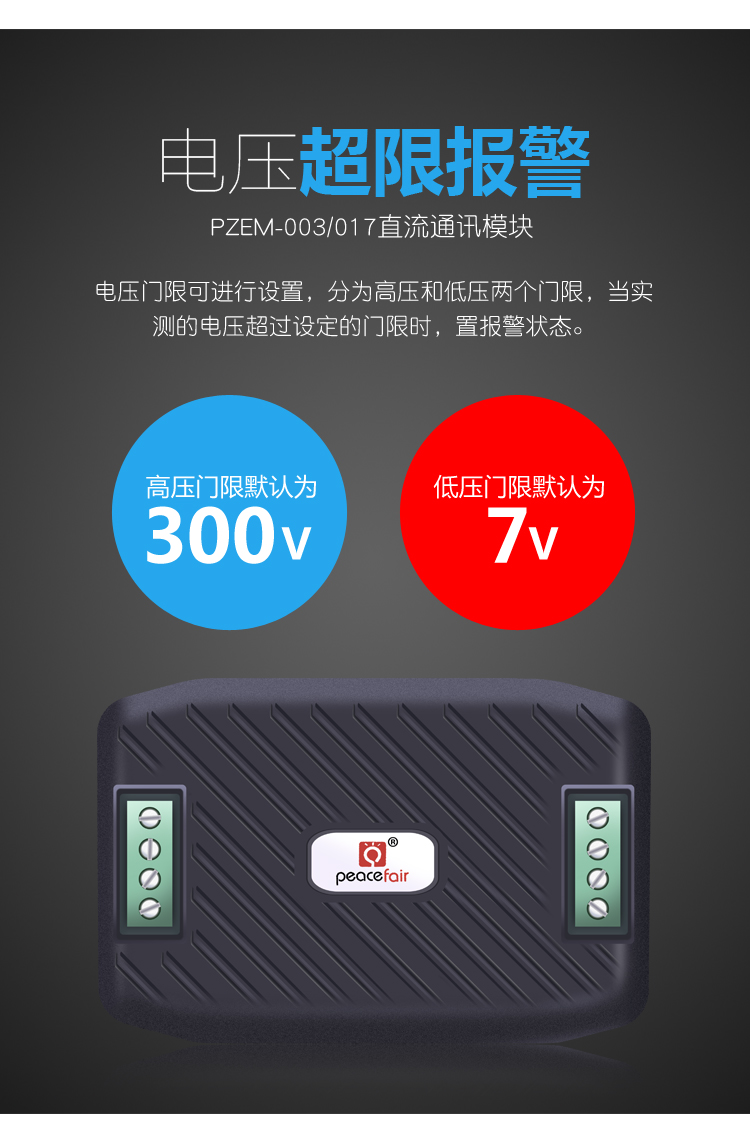

過壓報警
1.可設定電壓閾值,分為高壓和低壓閾值,當測量電壓超過閾值時,可報警
2.默認高壓閾值為300V,默認低壓閾值為7V。
注意:
請勿使用PC帶來的USB端口作為獨立電源,否則可能會損壞您的PC!

PZEM-003 DC Voltage Current Frequency Power Energy Consumption Meter Communication Module

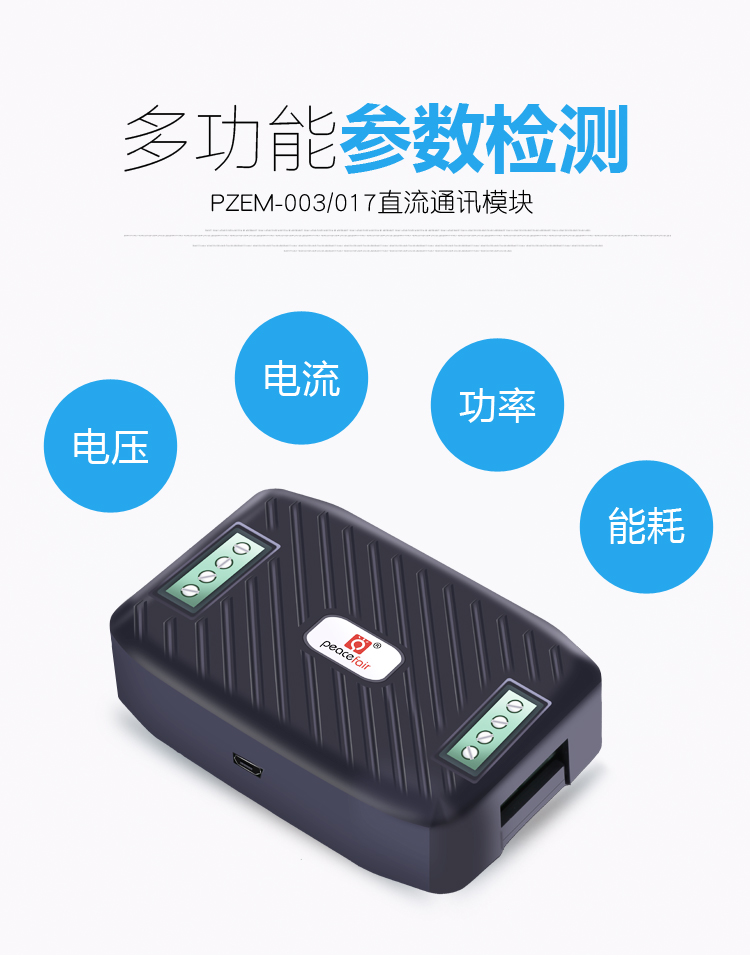

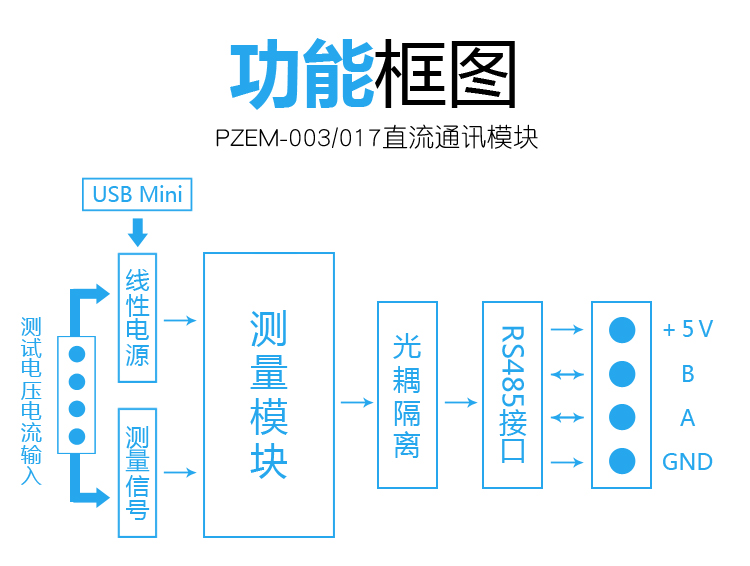

  • 【Multifunction】This module is mainly used for measuring DC voltage, current, active power, frequency and energy consumption. The module is without display function, the data is read through the RS485 interface

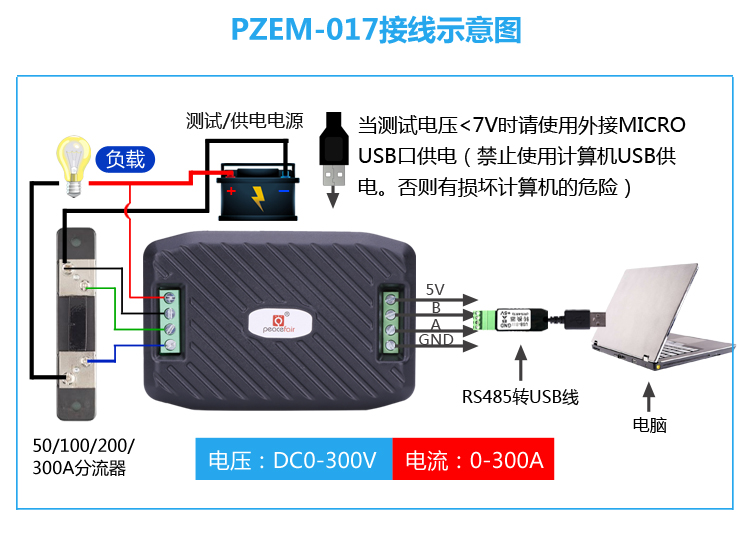

  • 【Input Power】Comes with built in shunt, the current measure range is 0.01-10A. RS485 interface is passive output, need external connect 5V power supply and the external power supply should >100mA

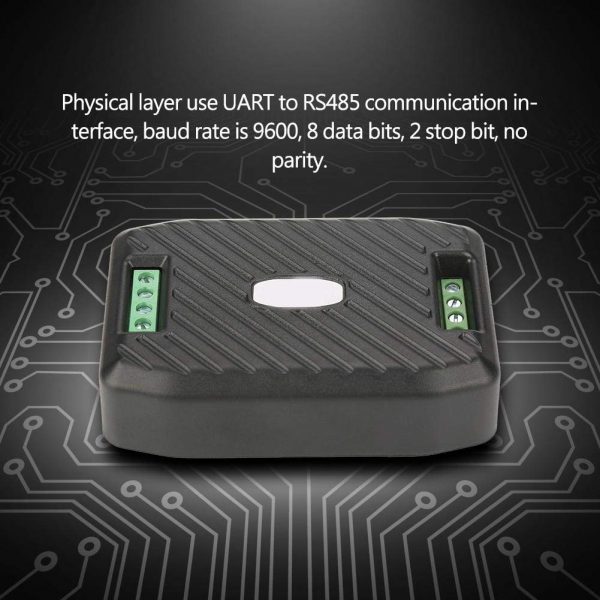

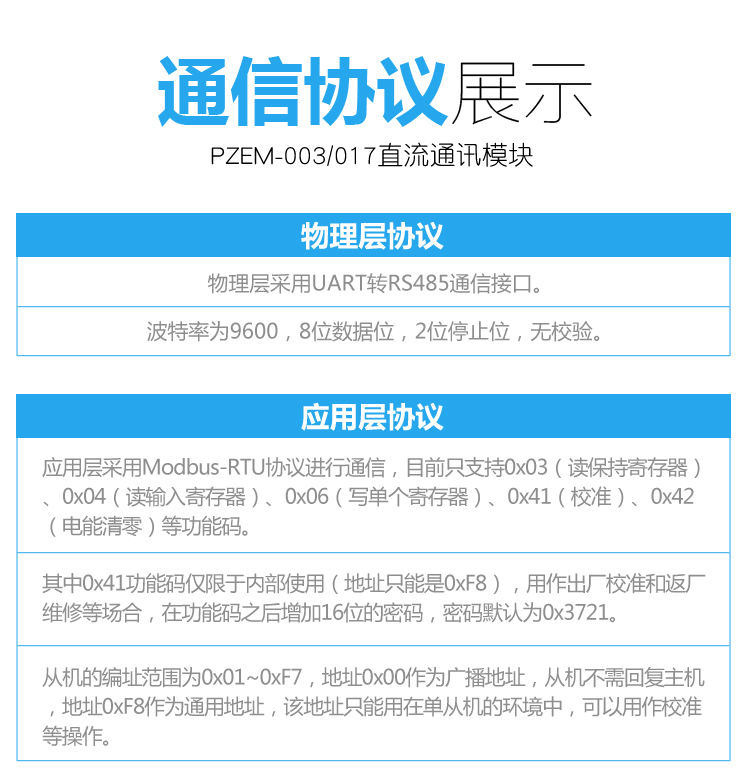

  • 【UART to RS485 Interface】Physical layer use UART to RS485 communication interface, baud rate is 9600, 8 data bits, 2 stop bit, no parity. When the input test voltage is less than 7V, it must supply 5V independent work voltage through USB port. Do NOT use the USB port bring by your PC to be the independent power supply, otherwise it may damage your PC

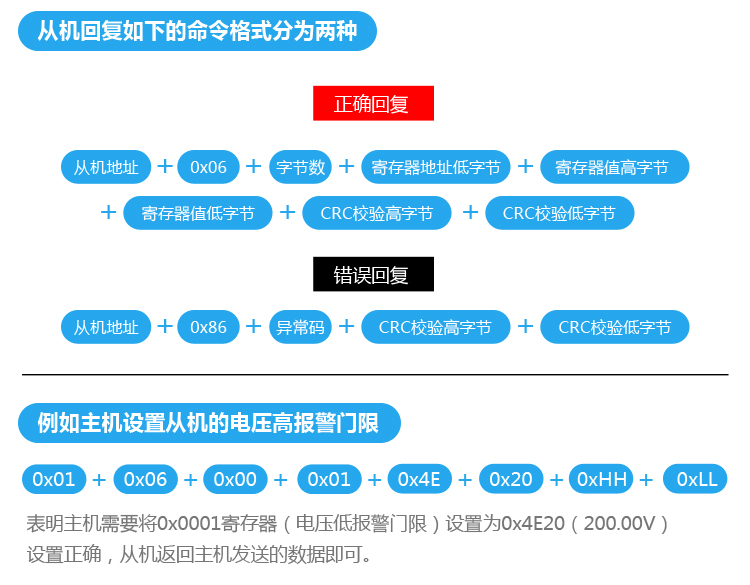

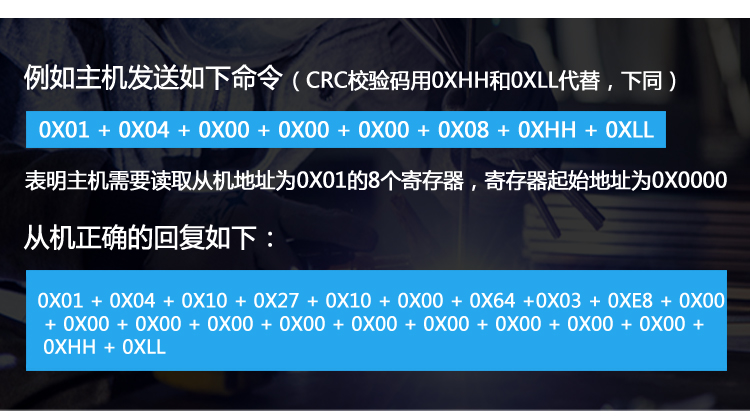

  • 【ModbusRTU Protocol】The application layer use the ModbusRTU protocol to communicate, it only supports function codes such as 0x03, 0x04,0x06, 0x41, 0x42, etc. It can display six measurement parameters on the computer when communicate through the software; it can also communicate with the buyer’s own micro controller (the buyer should program by yourself)
  • 【Widely Use】Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm. The high accuracy, better compatibility will make it use widely

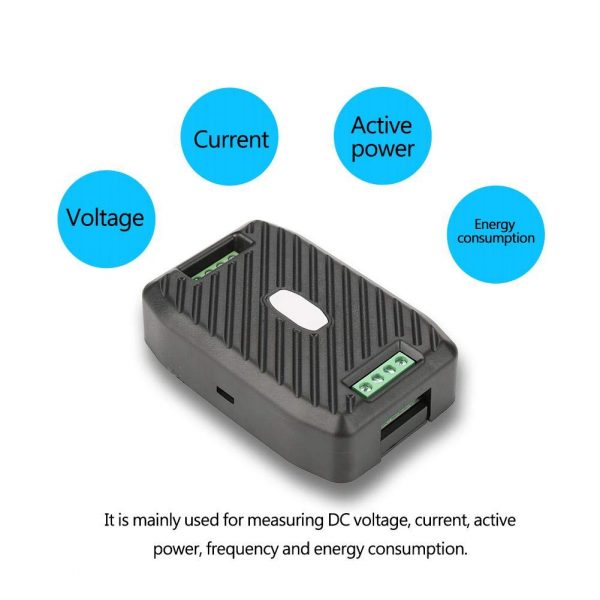

This module is mainly used for measuring DC voltage, current, active power, frequency and energy consumption, the module is without display function, the data is read through the RS485 interface.

Specification:
Brand: PEACEFAIR
Model: PZEM-003
Voltage:
Measuring Range: 0.05-300V (When the test voltage is <7V, please use the independent power supply mode) Resolution: 0.01V Measurement Accuracy: 1% Current:
Measuring Range: 0.01-10A Resolution: 0.01A Measurement Accuracy: 1% Power:
Measuring Range: 0.1-3kW Resolution: 0.1W Measurement Accuracy: 1% Energy Consumption:

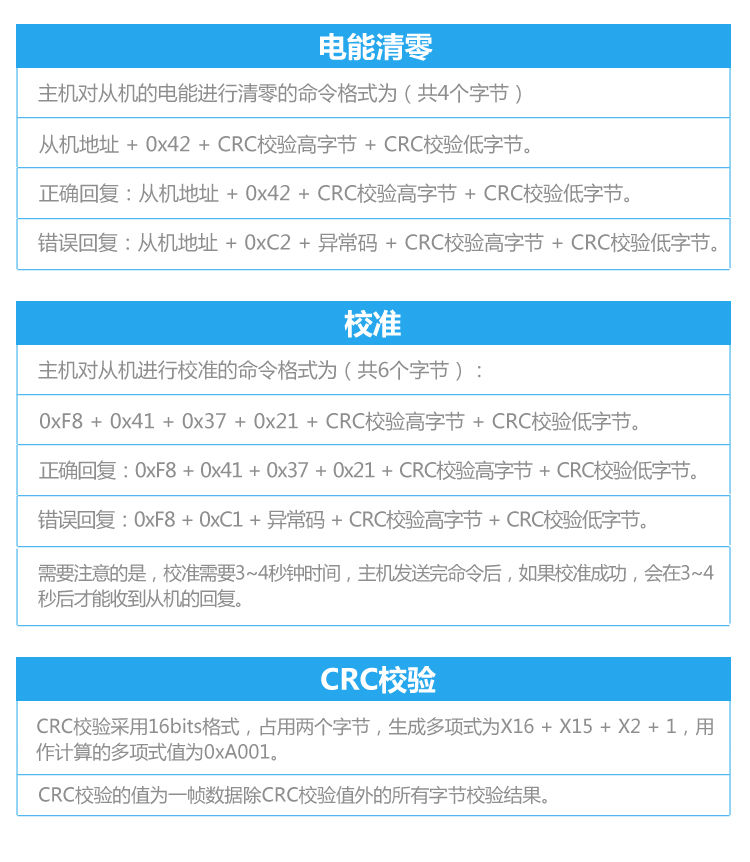

Measuring Range: 0-9999kWh Resolution: 1Wh Measurement Accuracy: 1% Reset Energy: Use Software to Reset

Over Voltage Alarm:
Default High Voltage Threshold: 300V Default Low Voltage Threshold: 7V Communication Interface: RS485 Interface
Working Temperature: -20~60℃
Product Size: Approx. 9*6*2.3cm/3.5*2.4*0.9inch
Weight: Approx. 72g~92g / 2.5oz~3.2oz

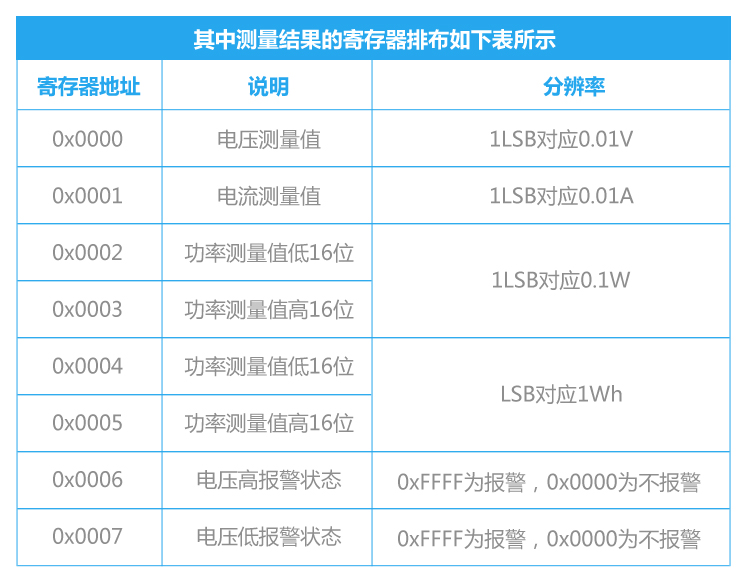

Description

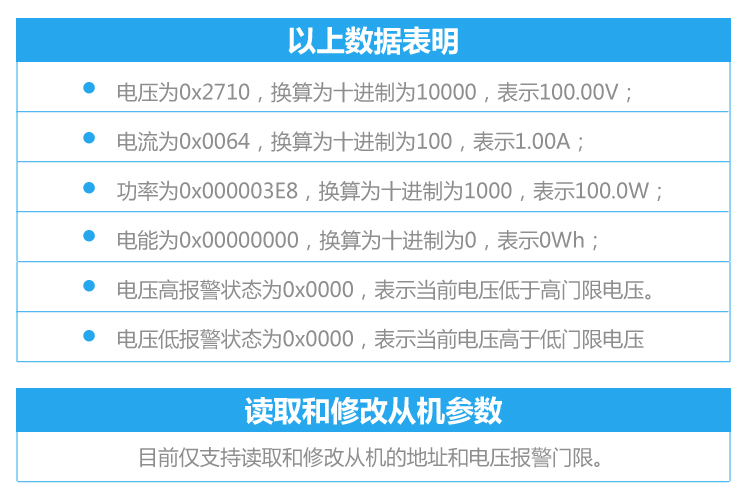

Resolution Voltage value: 1LSB correspond to 0.01V
Current value: 1LSB correspond to 0.01A
Power value low: 16 bits 1LSB correspond to 0.1W
Power value high: 16 bits
Energy value low: 16 bits 1LSB correspond to 1Wh
Energy value high: 16 bits High

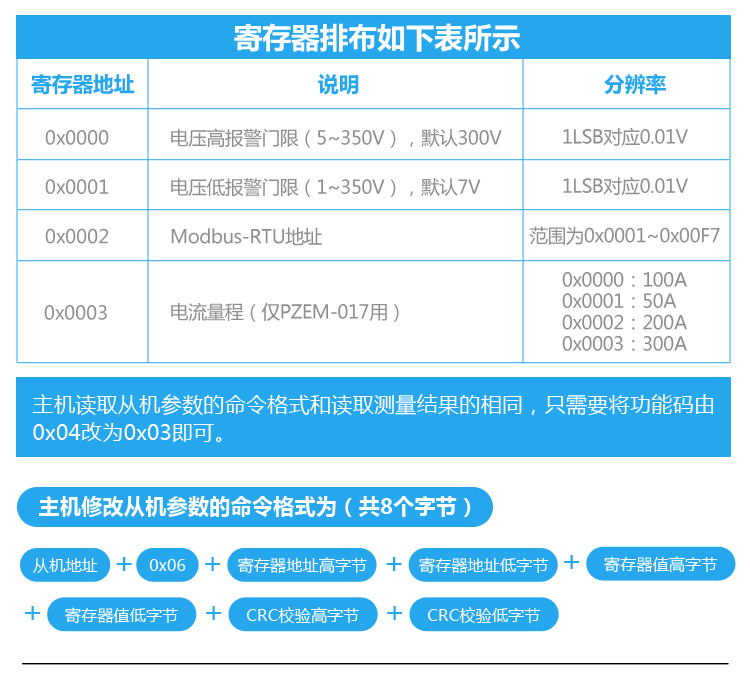

Register address Description Resolution 0x0000 High voltage alarm threshold(5~350V),
default is 300V 1LSB correspond to 0.01V 0x0001 Low voltage alarm threshold(1~350V),
default is 7V 1LSB correspond to 0.01V 0x0002 ModbusRTU address The range is 0x0001~0x00F7
