HIH-4030 濕度感測器模組 SparkFun 原裝進口


HIH-4030 濕度感測器模組 SparkFun 原裝進口

NT$730 NT$668

Availability: 尚有庫存 貨號: SNT-006236 分類: 標籤: , , , , ,


HIH-4030 濕度感測器模組 SparkFun 原裝進口



  • 近線性模擬輸出
  • 4-5.8VDC電源
  • 所有針腳都折成0.1英寸的間距接頭
  • 激光微調互換性
  • 低功耗設計,典型電流僅200μA
  • 精度更高
  • 響應時間短
  • 穩定,低漂移性能

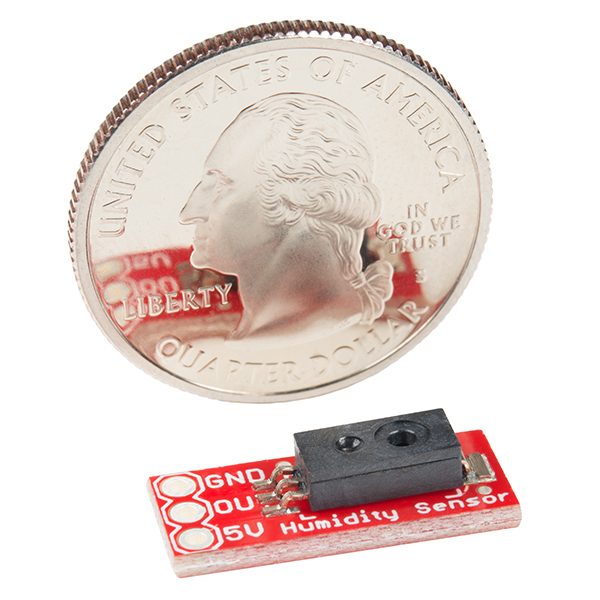

  • 0.75 x 0.30英寸(19.05 x 7.62毫米)

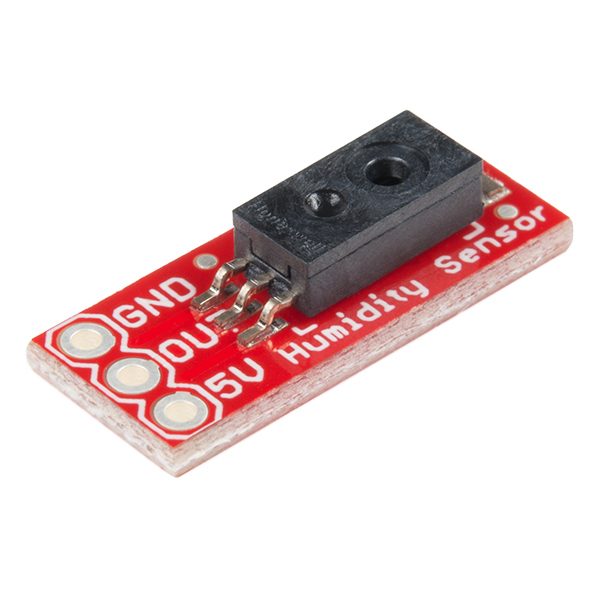

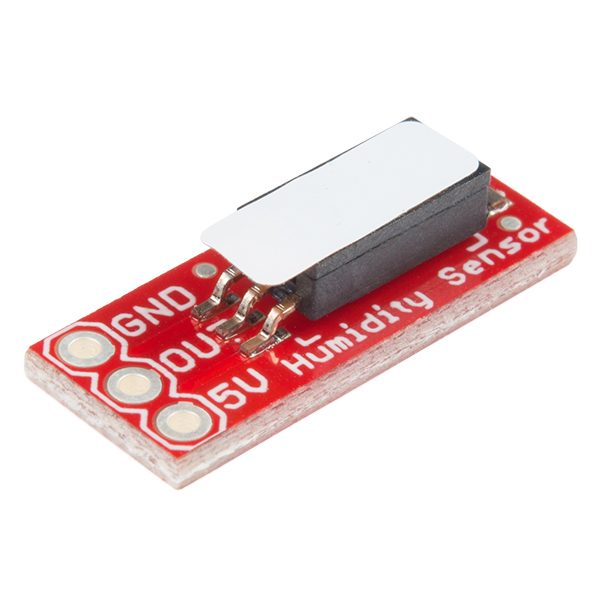

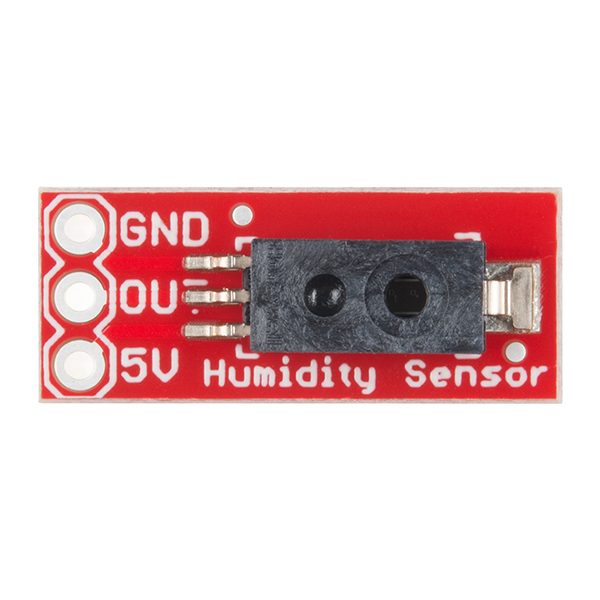

This is a breakout board for Honeywell’s HIH-4030 humidity sensor. The HIH-4030 measures relative humidity (%RH) and delivers it as an analog output voltage. You can connect the output of the sensor directly to an ADC on a microcontroller; and, thanks to the sensor’s near linear voltage output, the data is very easy to process.

Voltage applied to the supply pins should be within 4-5.8VDC, and optimally at 5V. The sensor will typically only consume about 200μA.

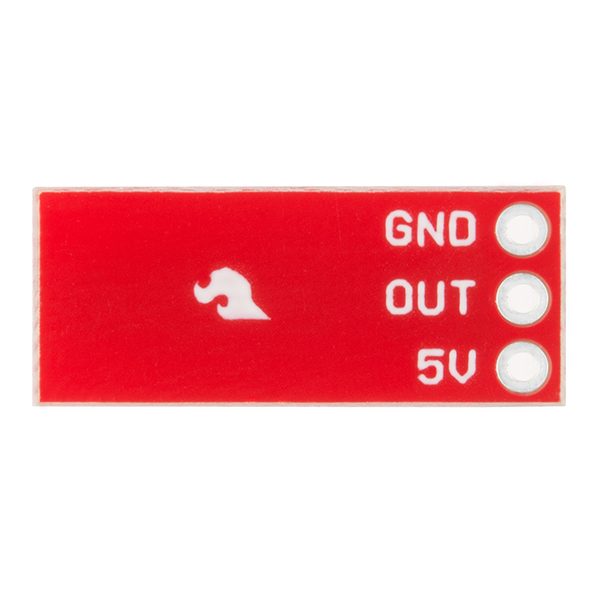

This product comes as shown in the picture, with the HIH-4030 soldered onto the breakout board. The pins of the 3-pin header are spaced by 0.1″.
