ARDUINO YUN REV 2 開發板 YUN R2 雲 支援乙太網路與 WIFI 連線

Arduino Yun Rev 2 是新系列Arduino 開發板的新成員,該板結合了Linux的功能和Arduino的特性簡單性。它結合了Leonardo模型晶片(ATMega32U4)和運行基於OpenWRT的Linux發行版Linino的SOC(片上系統)模組。最有趣的功能之一是它支持有線以太網和Wifi網絡。Arduino芯片已連接到Linux模組,因此它們之間的通信非常容易,並將繁重的過程委派給板載的Linux機器。

Arduino Yun Rev 2 連接性:

它具有兩個網絡連接。一個10/100 mbps以太網網絡和另一個可以作為客戶端或接入點安裝的Wifi(IEEE 802.11 b / g / n,2.4GHz)。

處理器之間的連接:

為了將小型ATMega32U4與Linux模組進行通信,使用了Bridge庫,這使事情變得更加容易,並且由Arduino團隊直接提供支持。AR9331的串行端口通過針腳0和1連接到32U4的串行端口。AR9331的串行端口是對CLI控制台的訪問,該控制台允許啟動進程並直接從控制台檢索消息。默認情況下已經預先安裝了幾個文件系統管理和管理軟件包(包括Python解釋器),並且橋接庫還允許您使用同一系統安裝和啟動自己的應用程序。最有趣的優點之一是 Arduino Yun Rev 2 板(在32U4側)可以由Wifi通過Linux模組直接編程。

這是一塊可以讓你實現各種可能性的開發板子。還應注意,它具有MicroSD內存插槽,可讓您在其上存儲數據,例如網頁,日誌或我們需要的任何其他東西,從而進一步擴展了開發板的可能性。

ARDUINO YÚN REV 2特性:

  • 微控制器:ATmega32u4
  • 工作電壓:5V
  • 輸入電壓:5V
  • 數字引腳:20
  • PWM通道:7
  • 模擬輸入:12
  • 通過I / O引腳的直流強度:40 mA
  • 3V引腳的DC電流:50 mA
  • 閃存32 KB(其中4 KB用作引導加載程序)
  • SRAM:5 KB
  • EEPROM:1 KB
  • 時鐘速度(AVR):16 MHz
  • Atheros AR9331處理器
  • 架構:MIPS @ 400MHz
  • 工作電壓:3V
  • 以太網IEEE 802.3 10 / 100Mbit / s
  • WiFi IEEE 802.11b / g / n
  • USB Type-A:0主機/設備
  • 讀卡器:僅限Micro-SD
  • 內存:64 MB DDR2
  • 閃存:32 MB
  • 3af兼容PoE

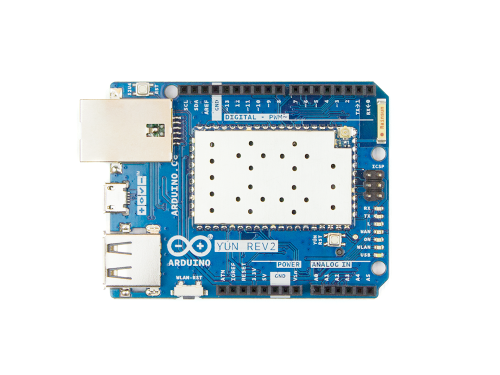

ARDUINO YÚN REV 2 開發板

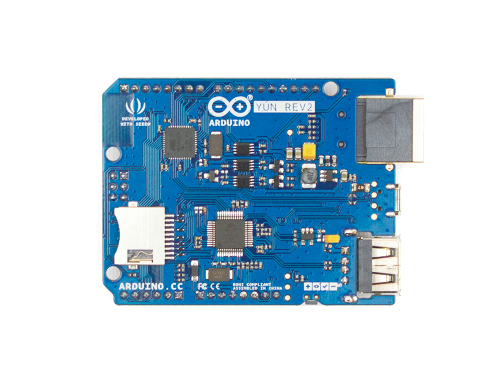

ARDUINO YÚN REV 2 開發板

教學文件與入門文件

ARDUINO YÚN REV 2

Arduino Yún Rev 2 is a Microcontroller Board based on the Microchip Technology ATmega32U4 8-bit Microcontroller and the Qualcomm Atheros AR9331 Processor. The Atheros Processor supports a Linux distribution based on OpenWrt named LininoOS. The board has built-in 802.3 10/100Mbit/s Ethernet and Wi-Fi® 802.11b/g/n 2.4GHz, making it ideal for connected IoT (Internet of Things) applications. Connection to a Wi-Fi or wired network is simple thanks to the YÚN Web Panel and the dedicated ”YunFirstConfig” sketch. Using the Yún Web Panel it is also possible to configure all the shield-related features and remotely upload sketches on the board connected to the shield. The Yún Rev 2 uses the Bridge library, extending the functionalities of the Microprocessor by using the computational power of the Linux processor on the board.



The Yún Rev 2 offers a space saving hoizontal Micro USB port and full USB 2.0 host, and a low-profile Ethernet 10/100 RJ45 port, designed to avoid potential short circuits when used with shields. Additional features include a microSD card slot, 20 digital input/output pins (7 of which can be used as PWM outputs and 12 as analog inputs), a 16MHz crystal oscillator, an ICSP header, 4 on-board status LEDs, and 3 reset buttons.

The hardware, software, and documentation of the Yún Rev 2 is freely available and open-source. This means that developers can learn exactly how it’s made and use its design as the starting point for their own projects.

FEATURES

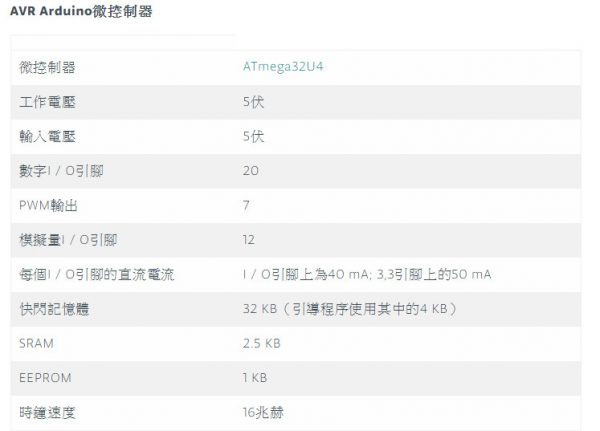

  • Microcontroller: Microchip Technology ATmega32U4
    • Operating Voltage: 5V
    • Input Voltage: 5V
    • Digital I/O Pins: 20
    • PWM Output: 7
    • Analog I/O Pins: 12
    • DC Current per I/O Pin: 40mA on I/O Pins; 50mA on 3,3 Pin
    • Flash Memory: 32KB (4KB used by bootloader)
    • SRAM: 2.5KB
    • EEPROM: 1KB
    • Clock Speed: 16MHz

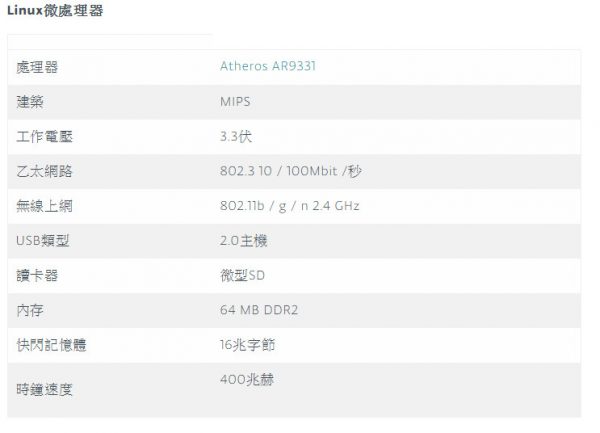

  • Processor: Qualcomm Atheros AR9331
    • Architecture: MIPS
    • Operating Voltage: 3.3V
    • Ethernet: 802.3 10/100Mbit/s
    • Wi-Fi: 802.11b/g/n 2.4GHz
    • Card Reader: MicroSD
    • RAM: 64MB DDR2
    • Flash Memory: 16MB
    • Clock Speed: 400MHz
  • LininoOS
    • Software stack updated to OpenWRT latest version, including all patches
    • SSL support on the bridge Arduino / Linux bridge
  • LEDs
    • ON (green): indicates that the shield is properly powered
    • WLAN (blue): indicates a connection to a wireless network
    • WAN (red): indicates connection to ethernet
    • USB (white) : indicates system activity and/or if a USB key is mounted
  • Board dimensions: 73mm x 53mm

• Clock speed: 400 MHz.

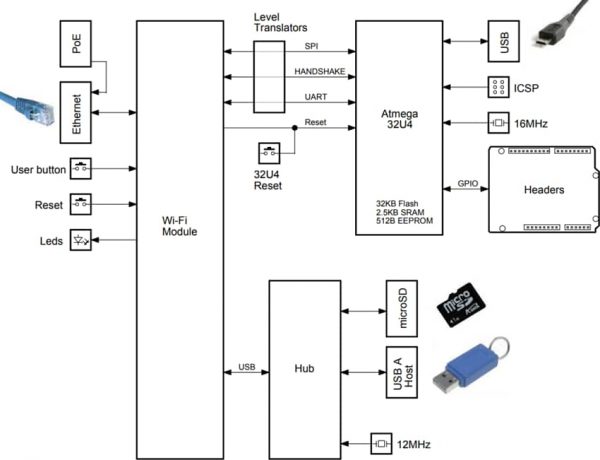

BLOCK DIAGRAM

Arduino Yún Rev 2
